Ash 20 Inch Kids Bike

About the Pinnacle Ash 20 Inch

Your little one is growing fast and they need a bike that can keep up with them. We have designed the Pinnacle Ash so that your child can make the most of every single ride they go on. Whether they are racing to school and back on weekdays, or blitzing through the park on weekends, the Ash can handle it all.

A 1×7 drivetrain, 20×1.95 tyres, and a lightweight aluminium frame make sure that hills, bumps, and speed are nothing to worry about. Short reach brake levers are designed for little hands, meaning your child will have no problem when they choose to stop.

Key Features

• Lightweight aluminium frame and wheels
• Child friendly short reach brake levers, comfortable rubber grips, and 7, easy-to-shift gears
• Confidence-inspiring geometry and huge 1.95 tyres
• Ideal for 5-8 year olds

Due to stock availability, some components may change without notice.

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be found here for reference.

Specifications

Frameset

• Frame: Aluminium
• Fork: Steel

Wheels

• Rims: Alloy, double wall, 36H
• Hubs: Alloy, 100mm/135mm
• Tyres: Black, 20 X 1.95

Drivechain

• Pedals: Black, plastic
• Crank: Alloy, 32T
• Front Derailleur: N/A
• Rear Derailleur: Shimano Tourney TY300 7-Speed
• Shifters: Shimano Tourney SL-TX30 7-Speed, thumb-shift
• Chain: KMC HV-500
• Bottom Bracket: Square-taper, cartridge bearing, 68mm
• Rear Cogs: Shimano MF-TZ500 7-Speed, 14-28T

Components

• Handlebar: Alloy butted, 520mm width
• Grips: Rubber
• Stem: Alloy, 28.6mm diameter, 60mm length
• Headset: 1 1/8
• Brakes: V-brake alloy
• Brake Levers: Short-reach Tektro JL-352
• Saddle: Black
• Seatpost: Alloy, 27.2mm

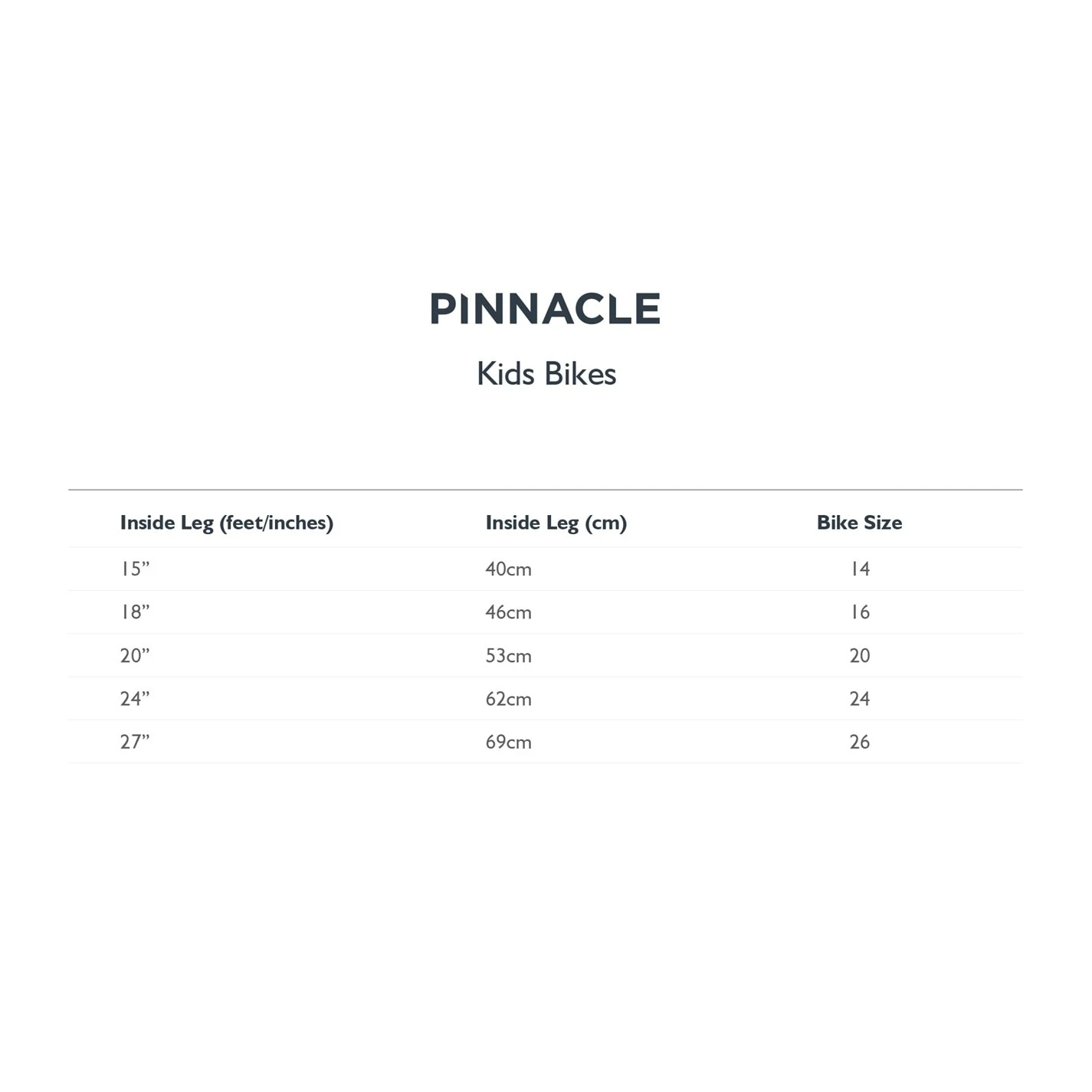

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Chainset Type


  1x

•
  Number of Gears


  7 Speed

•
  Brake Type


  Rim

•
  Discipline


  Recreational

•
  Wheel Size


  20 Inch


Product code: 939182
