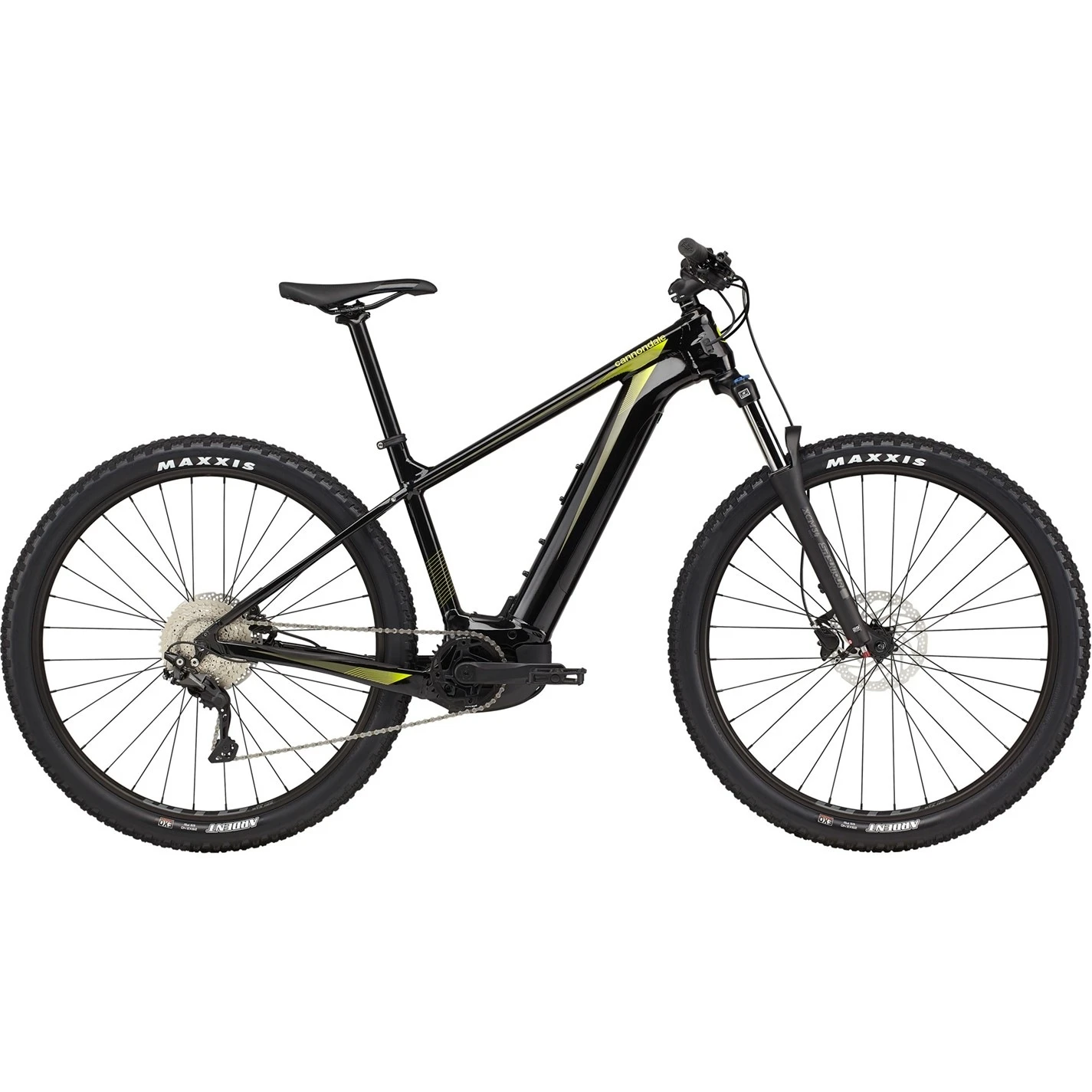

Cannondale Trail Neo 3 Electric Mountain Bike

About the Trail Neo 3

An e-mountain bike that will raise your game and ignite a passion for the trail

Where it thrives: Low-impact trails, up and down hills

What it’s built for: Speed, efficiency, handling

Key Features

• Lightweight SmartForm C1 Alloy frame, dual battery ready / SR Suntour XCM 34 Boost 100mm fork
• Shimano Deore 10-speed drivetrain / hydraulic disc brakes
• Bosch Performance Line CX drive unit / 500Wh battery / Range: up to 114km

Specifications

Frameset

• Frame: SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts
• Fork: SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset

Wheels

• Rims: WTB STX i25 TCS, 32h, tubeless ready
• Hubs: (F) Shimano MT400, 15x110mm thru-axle (R) Shimano MT400, 12x148mm thru-axle
• Tyres: Maxxis Ardent, 27.5/29 x 2.4, Wire 60TPI Exo

Drivetrain

• Pedals: Not included
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore M4100
• Shifters: Shimano Deore M4100, 10-speed
• Chain: Shimano HG54, 10-Speed
• Crankset: FSA Bosch E-Bike w/ custom Ai offset, 34T
• Rear Cogs: Shimano Deore, 11-42, 10-Speed

Components

• Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Stem: Cannondale 3, 6061 Alloy, 31.8, 0°
• Brakes: Shimano MT200 hydraulic disc, 180mm RT10 rotors
• Brake Levers: Shimano MT200 hydraulic disc
• Saddle: Cannondale Ergo XC
• Seatpost: Cannondale 4, 6061 Alloy, 31.6 x 350mm

E-System

• Drive Unit: Bosch Performance Line CX
• Battery: Bosch Powertube 500Wh
• Charger: Bosch 2A
• Display: Bosch Purion

Bike Sizing

Product code: 713362
