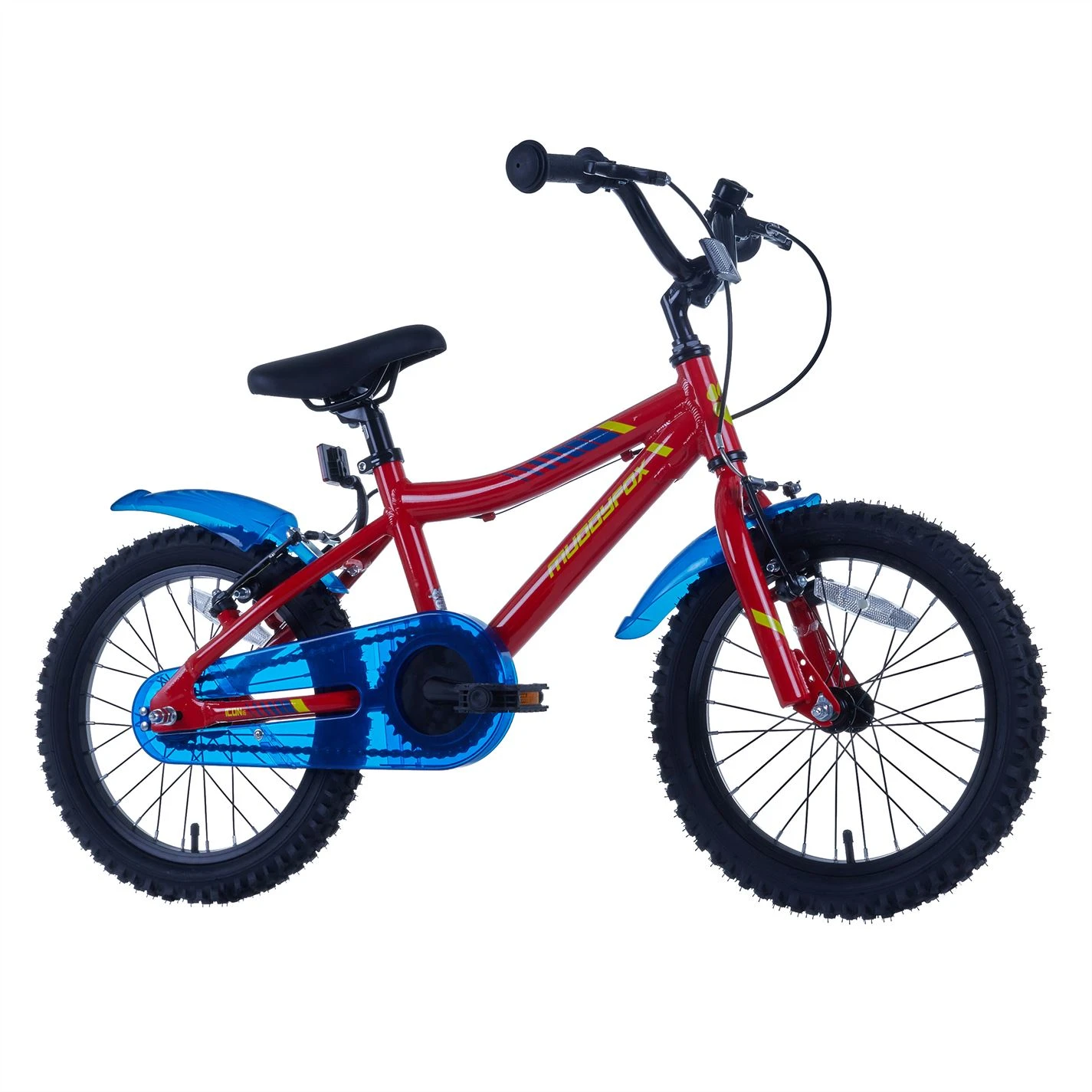

Icon 16 Inch Boys’ Bike

About the Muddyfox Icon 16 Inch Boys’ Bike

Give your little one the freedom to explore their local area with friends and family. The 16 inch Icon bike is the next step up from our 14 inch model and is suitable for 4-6 year olds.

The Icon is designed to be able to handle grass, paths, and pavements alike and the single speed set-up means it is easy to maintain. The alloy frame is lightweight and robust meaning it can withstand bumps and is light enough to carry if needs be. Help your little one get out and about this summer with the Icon 16 inch.

Please note: All Muddyfox bikes are sold in boxes and are only part constructed. Please be aware that you will be required to fit certain parts and make setup adjustments to components such as the gears and brakes prior to use and also on an ongoing basis for maintenance purposes. We charge a £25 build fee for in-store orders of Muddyfox bikes.

Key Features

• Alloy V-brakes give good stopping power in all weather conditions
• Aluminium frame is robust and lightweight
• Single speed gear set-up is easy to maintain and simple to use

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be found here for reference.

Specifications

Frameset

• Frame: Alloy, 16 inch
• Fork: Steel 16 inch with V-Brake pivots

Wheels

• Rims: Single wall alloy, 218 inch, 28H
• Hubs: (F) 93mm, 28H (R) 110mm, 28H
• Tyres: 16 x 1.75

Drivetrain

• Pedals: Black plastic w/ reflectors
• Front Derailleur: N/A
• Rear Derailleur: N/A
• Shifters: N/A
• Chain: KMC S1

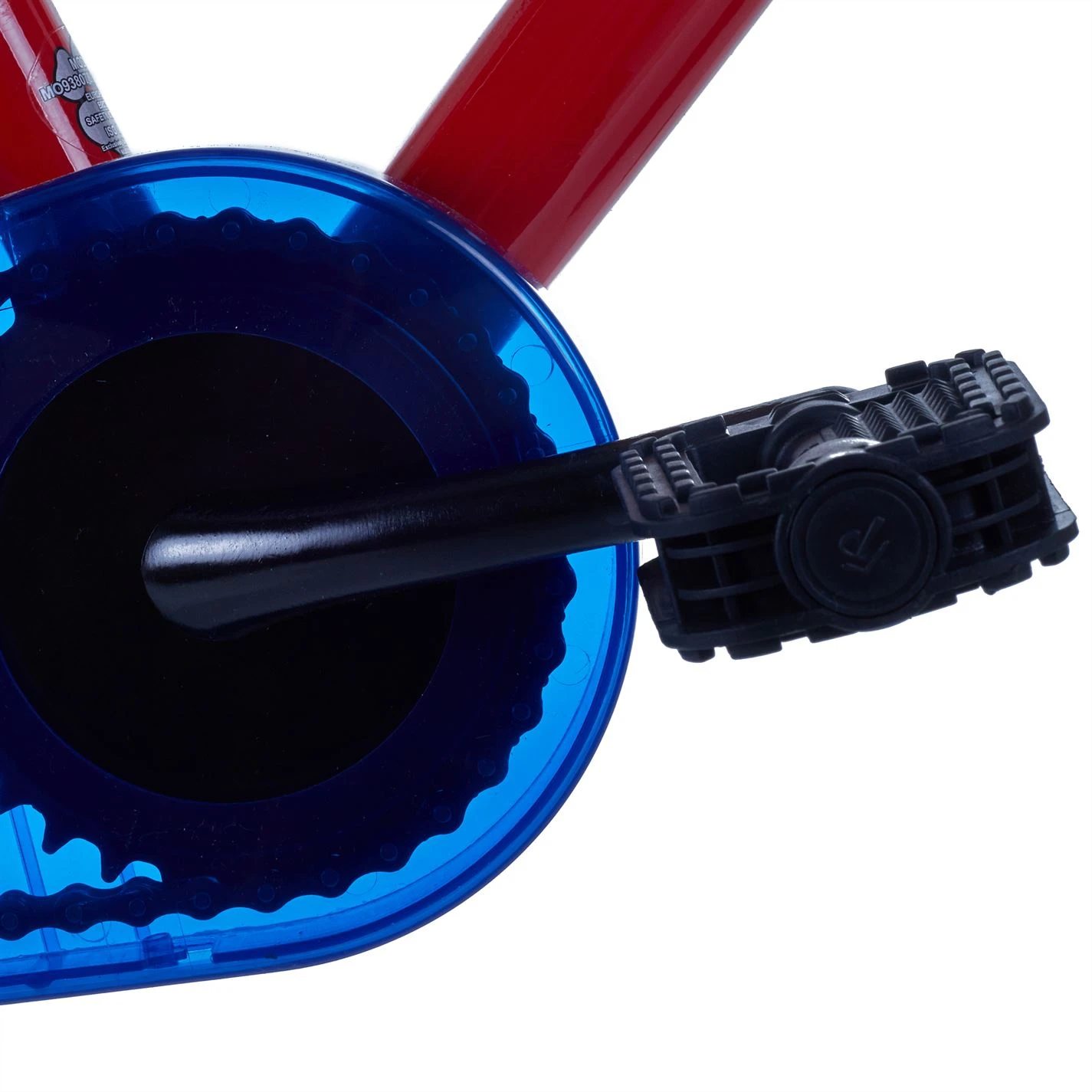

• Crankset: Steel chainwheel, 32T, 114mm crank
• Rear Cogs: 16T single speed cog

Components

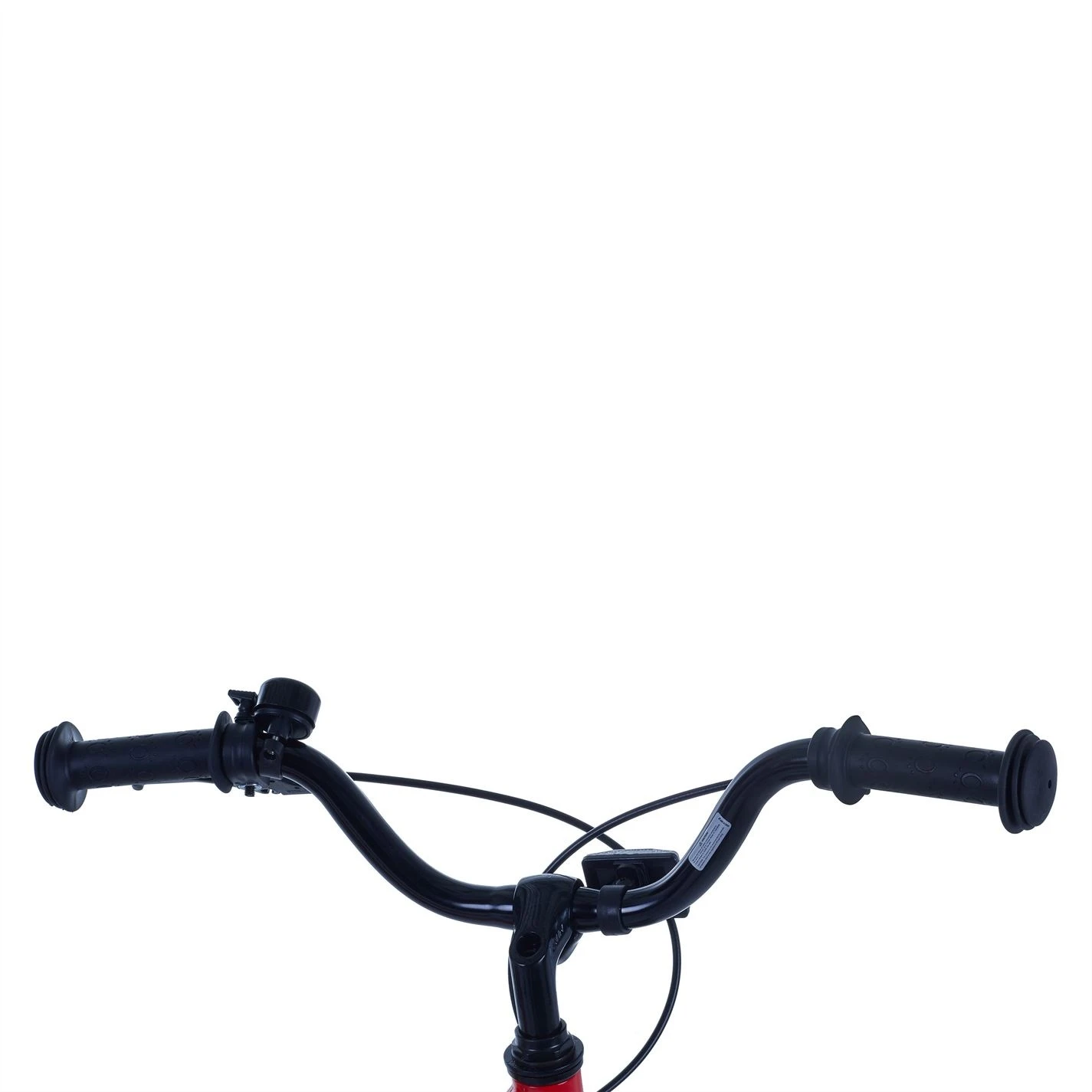

• Handlebar: Alloy. Diameter: 22.2mm. Rise: 100mm.
• Stem: 22.2mm, 40mm length
• Brakes: V-Brakes
• Brake Levers: Power alloy levers
• Saddle: Cionlli saddle
• Seatpost: Alloy, 27.2 x 150mm

PLEASE NOTE, DUE TO COMPONENT AVAILABILITY, SPECIFICATIONS MAY CHANGE WITHOUT NOTICE

Bike Sizing

•
  Chainset Type


  1x

•
  Number of Gears


  Single Speed

•
  Brake Type


  Rim

•
  Discipline


  Recreational

•
  Wheel Size


  16 Inch


Product code: 938078
