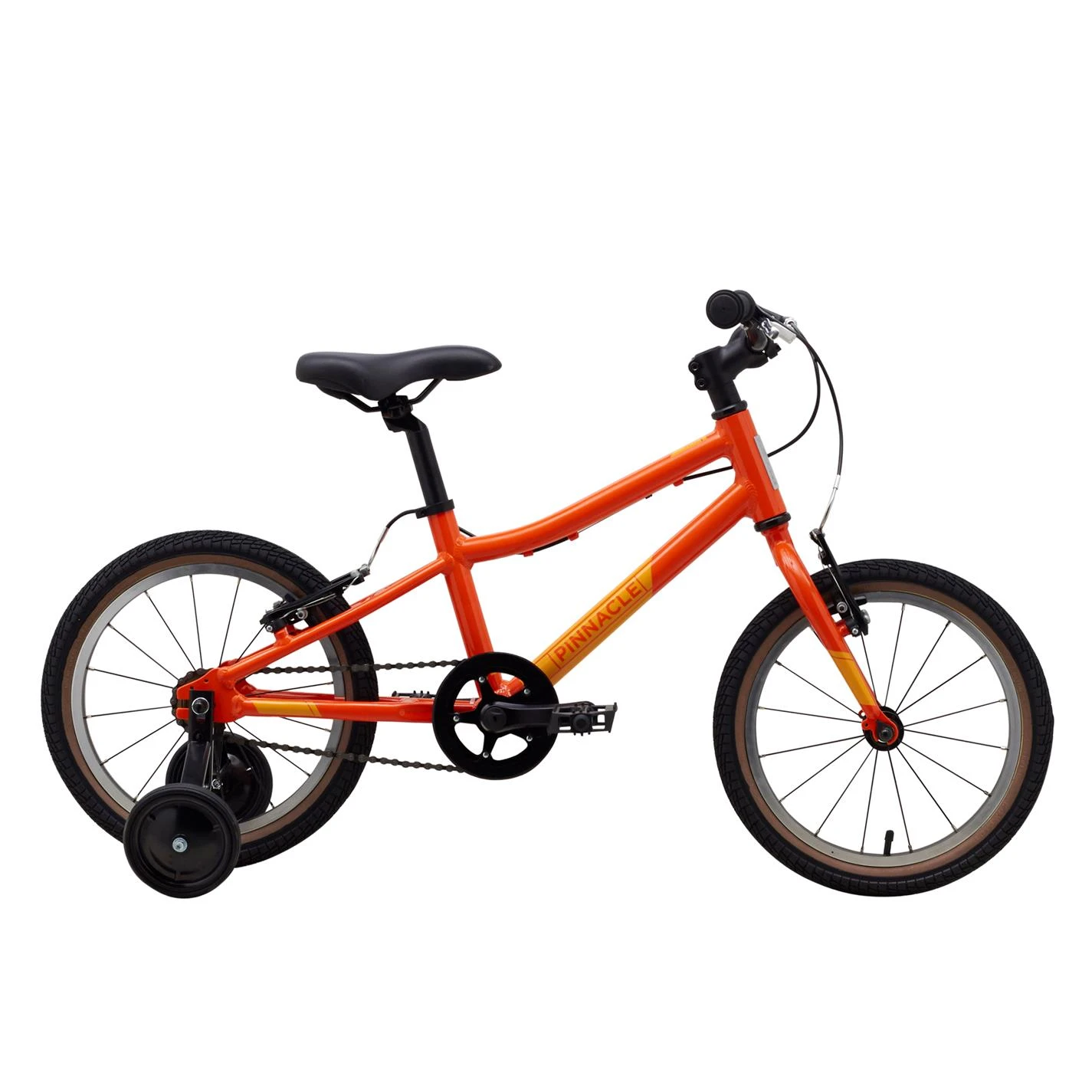

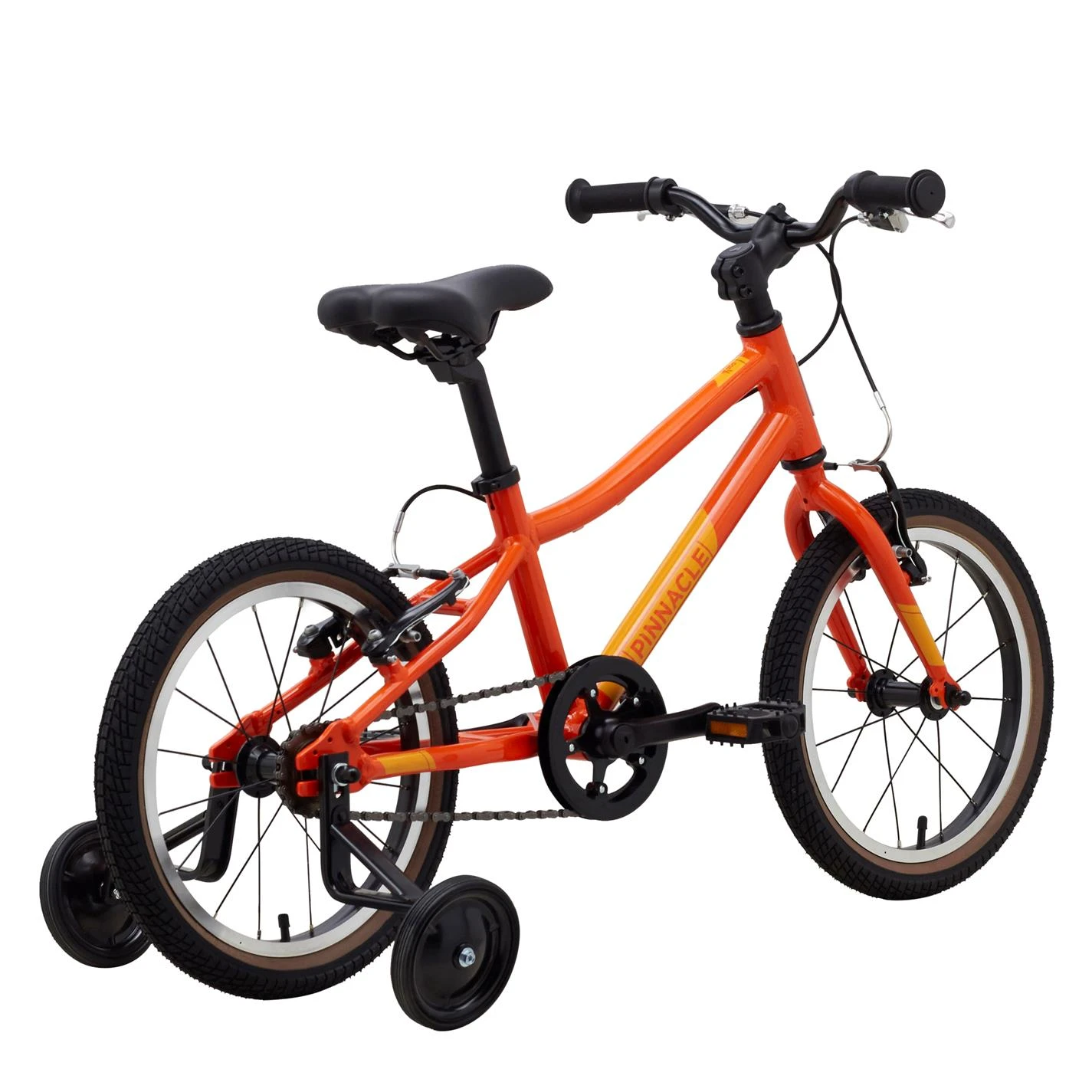

Koto 16 Inch Kids Bike

About the Pinnacle Koto 16 Inch

We designed the Pinnacle Koto to give your little one that extra boost of confidence on the school run and out and about on the weekends. A larger frame than our Pinnacle Koa, we made the Koto with the idea to eventually take off the stabilisers and encourage your child to start riding unassisted.

A lightweight aluminium frame and 16 inch wheels will help them pick up enough speed to keep up on weekend family rides through the park and 1.75 inch wide tyres will absorb bumps and lumps.

The Koto is a fun, lightweight, and grown-up bike; help your little one get the most out of cycling at an early age.

Key Features

• Lightweight aluminium frame and wheels
• Child friendly short reach brake levers, comfortable rubber grips, and easy to use single speed
• Confidence-inspiring geometry to encourage your child to get going straight away and eventually gear towards being able to ride without the stabilisers
• Ideal for 4-6 year olds

Due to stock availability, some components may change without notice.

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be found here for reference.

Specifications

Frameset

• Frame: Aluminium
• Fork: Steel

Wheels

• Rims: Alloy, single wall, 16H
• Hubs: Alloy, 100mm/110mm
• Tyres: Black/Tan, 16 X 1.75

Drivetrain

• Pedals: Black, plastic
• Crank: Alloy, 32T
• Front Derailleur: N/A
• Rear Derailleur: N/A
• Shifters: N/A
• Chain: KMC C-410
• Bottom Bracket: Square-taper, cartridge bearing
• Rear Cogs: Single speed freewheel, 18T

Components

• Handlebar: Alloy, 440mm width
• Grips: Rubber, flange
• Stem: Alloy, 28.6mm diameter, 60mm length
• Headset: 1 1/8, cartridge top and ball retainer bottom
• Brakes: V-brake alloy
• Brake Levers: Short-reach Tektro JL-352
• Saddle: Black
• Seatpost: Alloy, 27.2mm

Weight

• Without Stabilisers: 6.4KG
• With Stabilisers: 7.5KG

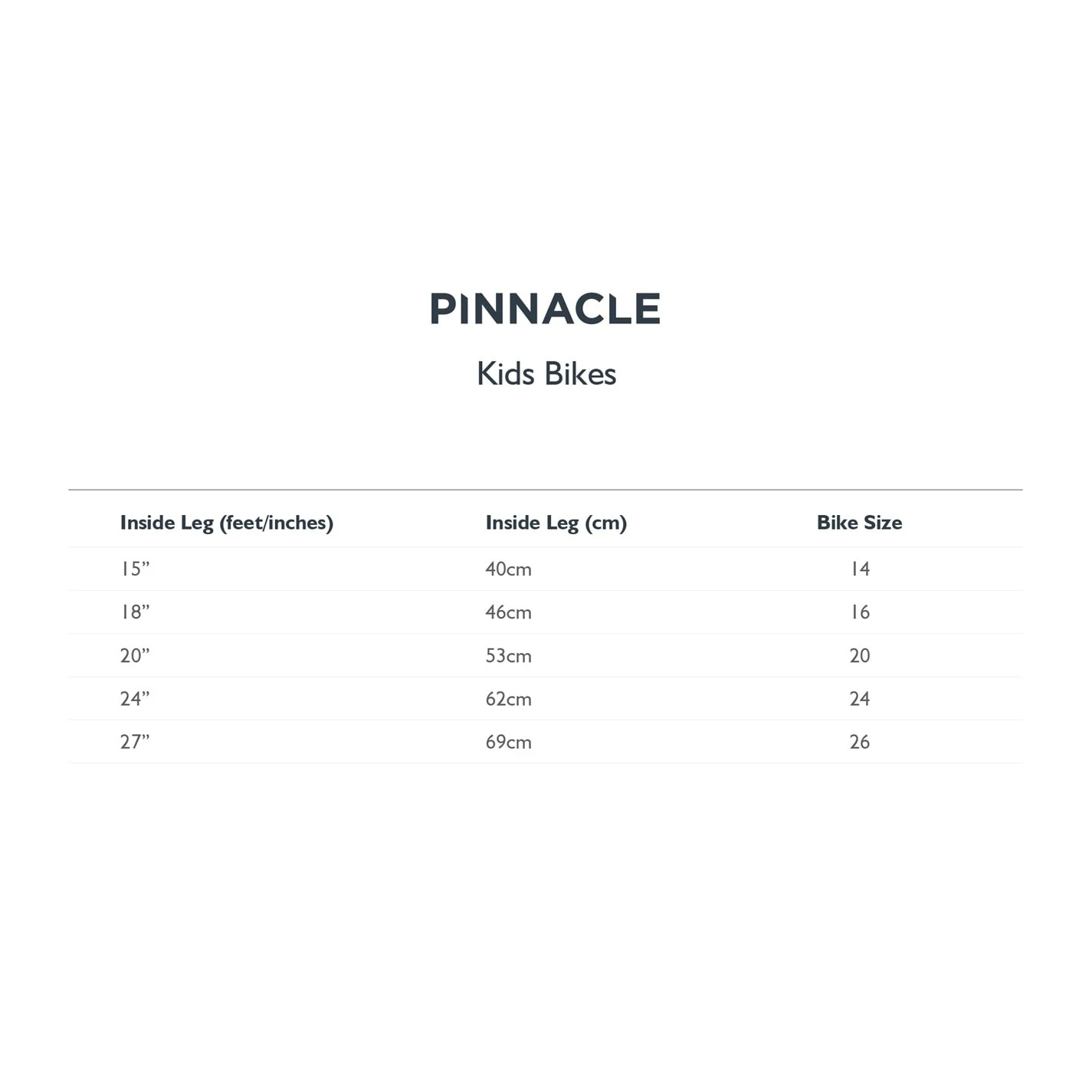

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Chainset Type


  1x

•
  Number of Gears


  Single Speed

•
  Brake Type


  Rim

•
  Discipline


  Recreational

•
  Wheel Size


  16 Inch


Product code: 939181
