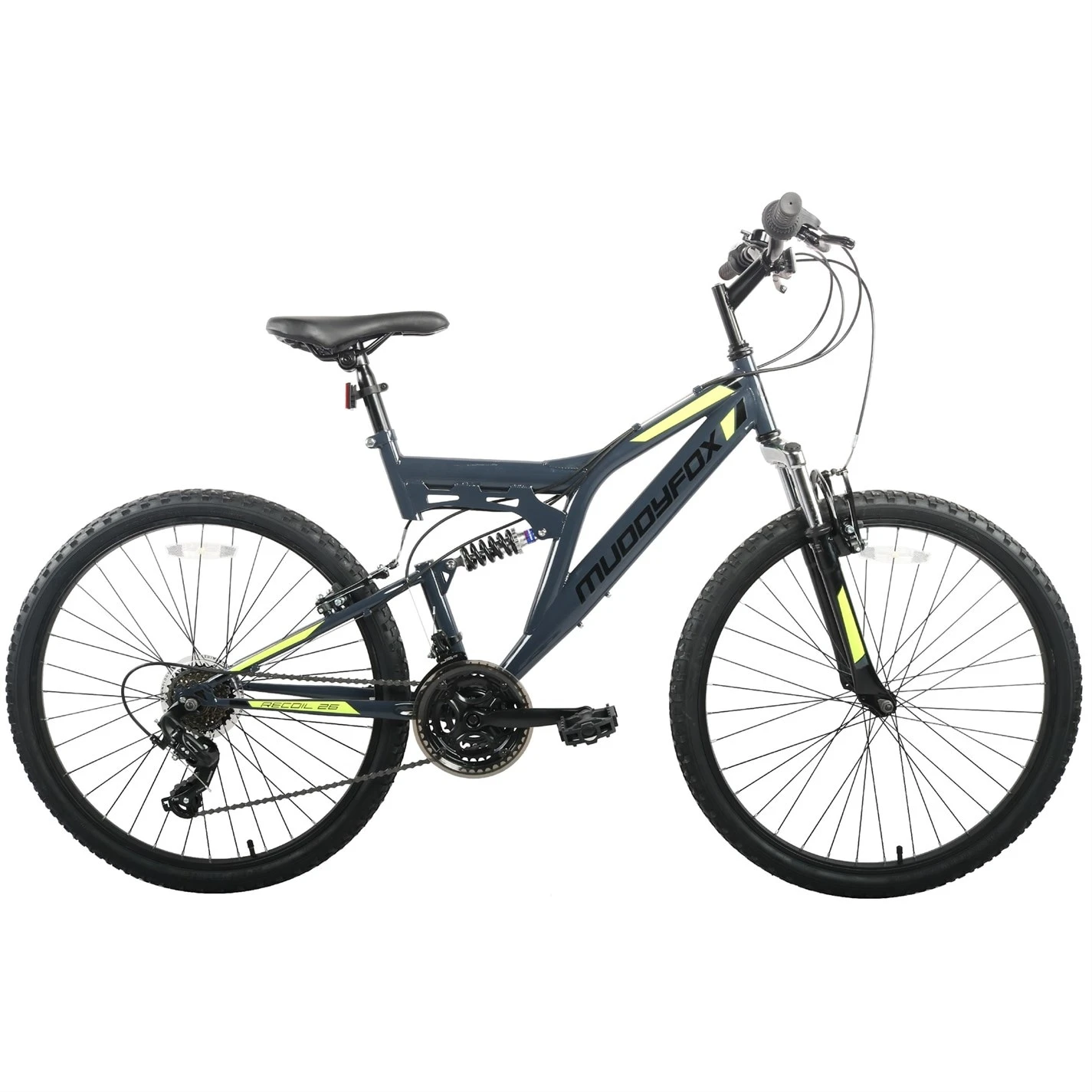

Recoil 26 Inch Mens Mountain Bike

About the Muddyfox Recoil 26 Inch

Please note: The style you receive may vary from the image shown. The Muddyfox Recoil is designed to maximise fun! The bike is equipped with 18 gears which delivers personalized gear choices that take you as far and wide as you want to go. The bike is finished off with V-brakes for reliability and consistency you can count on for controlled stopping in all conditions. The front and rear suspension is there for a comfortable ride and topped off with a foam saddle.

Please note: All Muddyfox bikes are sold in boxes and are only part constructed. Please be aware that you will be required to fit certain parts and make setup adjustments to components such as the gears and brakes prior to use and also on an ongoing basis for maintenance purposes. We charge a £25 build fee for in-store orders of Muddyfox bikes.

Key Features

• Dual suspension to absorb bumps
• Shimano Tourney for easy gear shifting
• Lightweight alloy wheelset

This bike will be delivered unbuilt

Specifications

Frameset

• Frame: Steel 26 Full Suspension
• Frame size: UK 18 Inches
• Fork: 26 Suspension fork with V-brake pivots, HXF-270E
• Rear Shock: YH-400A (CP Main Body, Black Spring)

Wheels

• Rims: 26 x 1.75, alloy, 36H
• Hubs: (F) Steel, 100 x 140mm, nutted (R) Steel, 130 x 170mm, nutted, freewheel
• Tyres: 26 x 2.10 MTB tyres

Drivetrain

• Pedals: Black, plastic
• Front Derailleur: Shimano Tourney FD-TZ30, 31.8

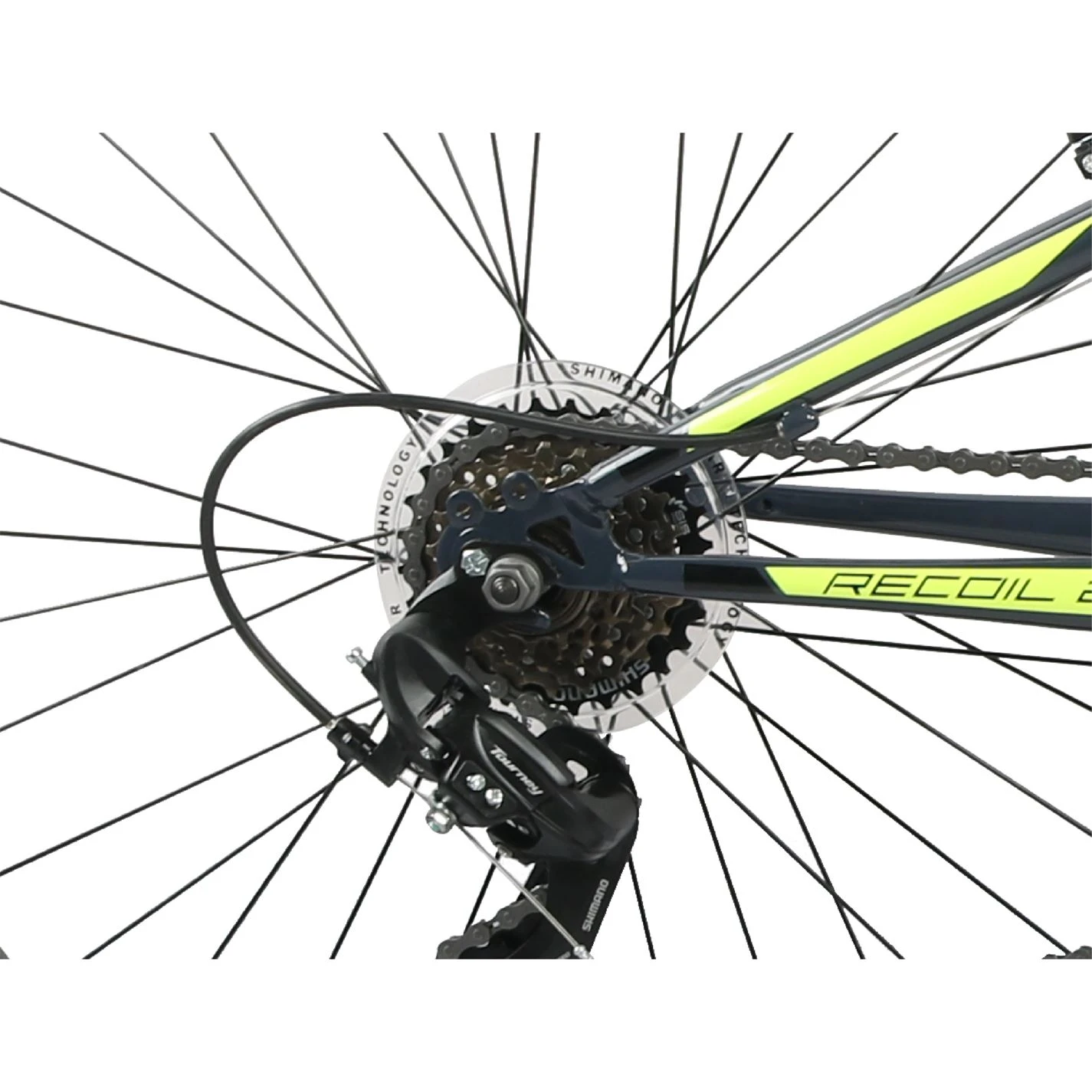

• Rear Derailleur: Shimano Tourney TY300B, 6-Speed
• Shifters: Shimano Revoshift SL-RS35, 6×3-Speed
• Chain: KMC HP6L

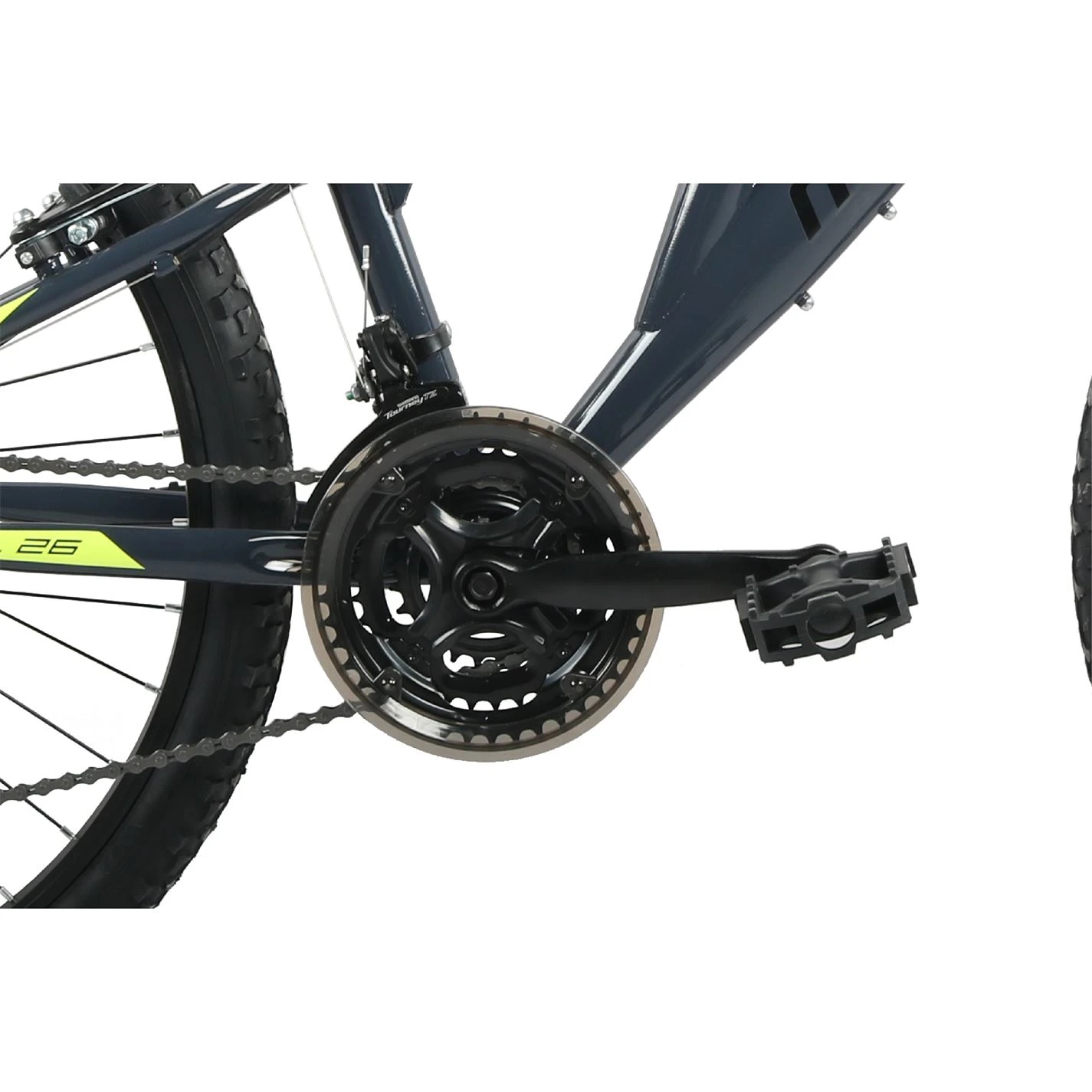

• Crankset: Steel triple chainwheel 24/34/42T, 152mm cotterless crank
• Rear Cogs: Shimano MF-TZ500, 14-28T

Components

• Handlebar: Steel, Diameter: 25.4mm. Width: 580mm. Rise: 30mm
• Stem: Steel Quill Stem, 22.2mm, 25 degree rise
• Brakes: Power VBR-218A Alloy V-Brakes
• Brake Levers: Power VBL-288A, 3 finger V-Brake levers
• Saddle: MTB, Black Steel Rails
• Seatpost: Steel, 28.6mm x 8

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Model Year


  2022

•
  Frame Material


  Steel

•
  Frame Style


  Traditional

•
  Suspension Type


  Full Suspension

•
  Chainset Type


  2x

•
  Number of Gears


  15 Speed

•
  Brake Type


  Rim

•
  Discipline


  Cross Country

•
  Axle Type


  Quick Release

•
  Pedals


  Included


Product code: 938441
