Trek Fuel EX 7 NX

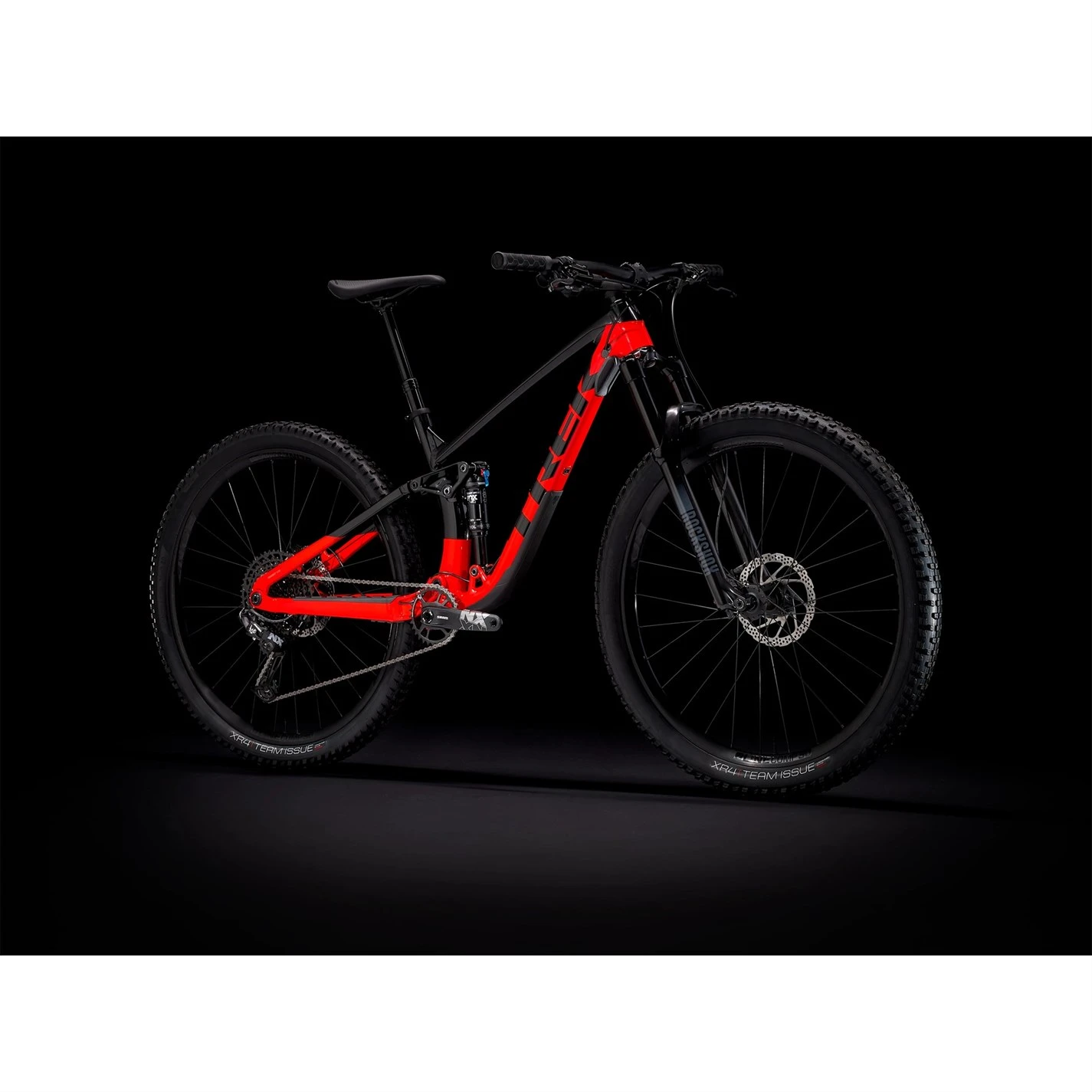

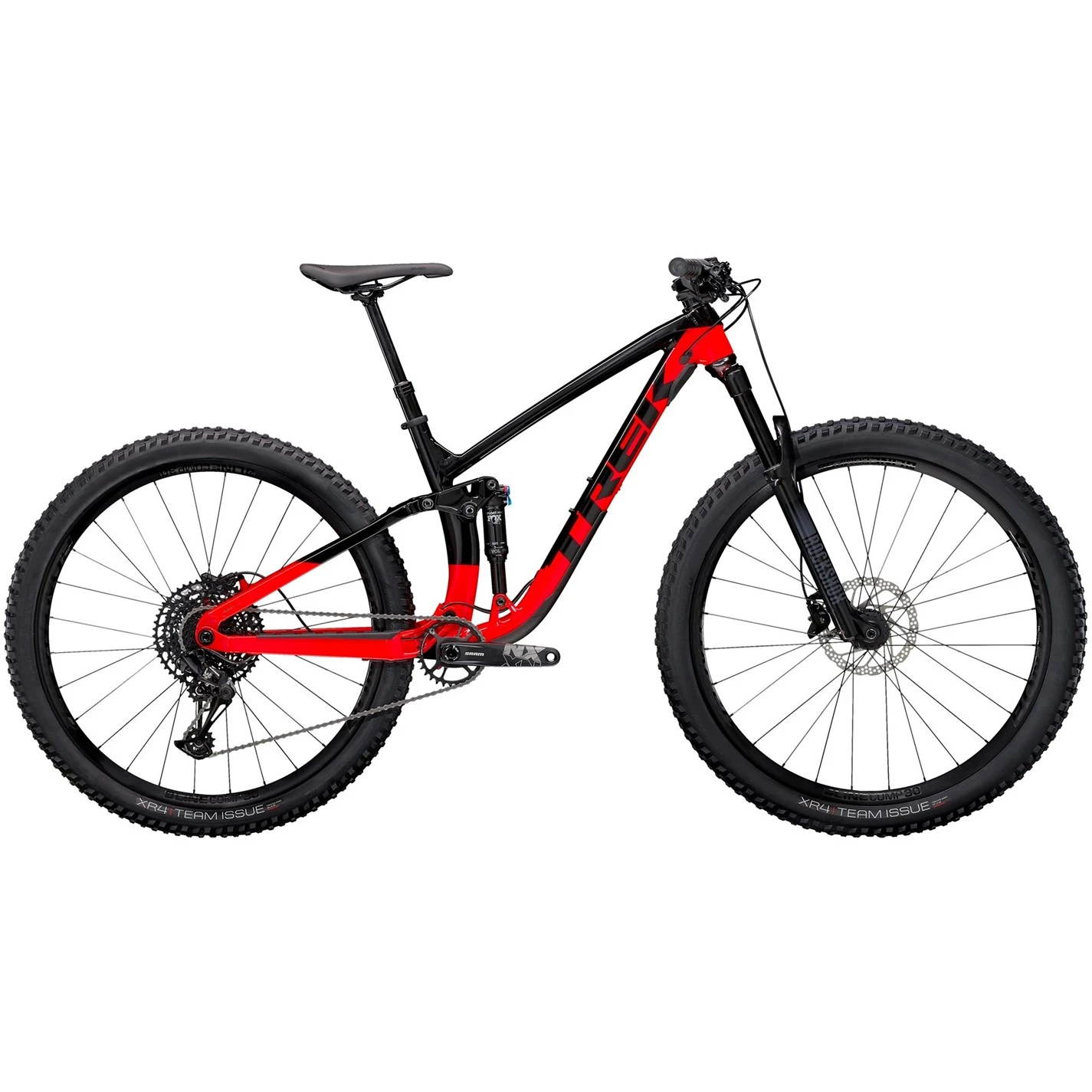

About the Trek Fuel EX 7

Fuel EX 7 shines when you’re charging down tricky descents, where the upgraded suspension package comes in handy. A lightweight aluminium frame, tubeless-ready wheels, and a reliable 1×12 SRAM NX Eagle drive train make this an amazing all-around full suspension mountain bike.

Key Features

• It’s right for you if… You want one bike that’s fun to ride on every trail, and you want upgraded parts, like a smoother DebonAir spring fork and a completely tubeless set-up for less weight and more traction.
• The tech you get: A light yet stiff alloy frame, a 140 mm RockShox fork with a DebonAir spring for better small-bump compliance and a FOX shock. A 1×12 SRAM NX Eagle drive train with a wide gear range. Plus, Bontrager wheels with tubeless tyres and a dropper post.
• The final word: Fuel EX 7 is a great all-around trail bike for a wide variety of terrain. It has upgrades where it matters most, like the suspension, drive train and tubeless-ready Bontrager wheels.

Specifications

Frameset

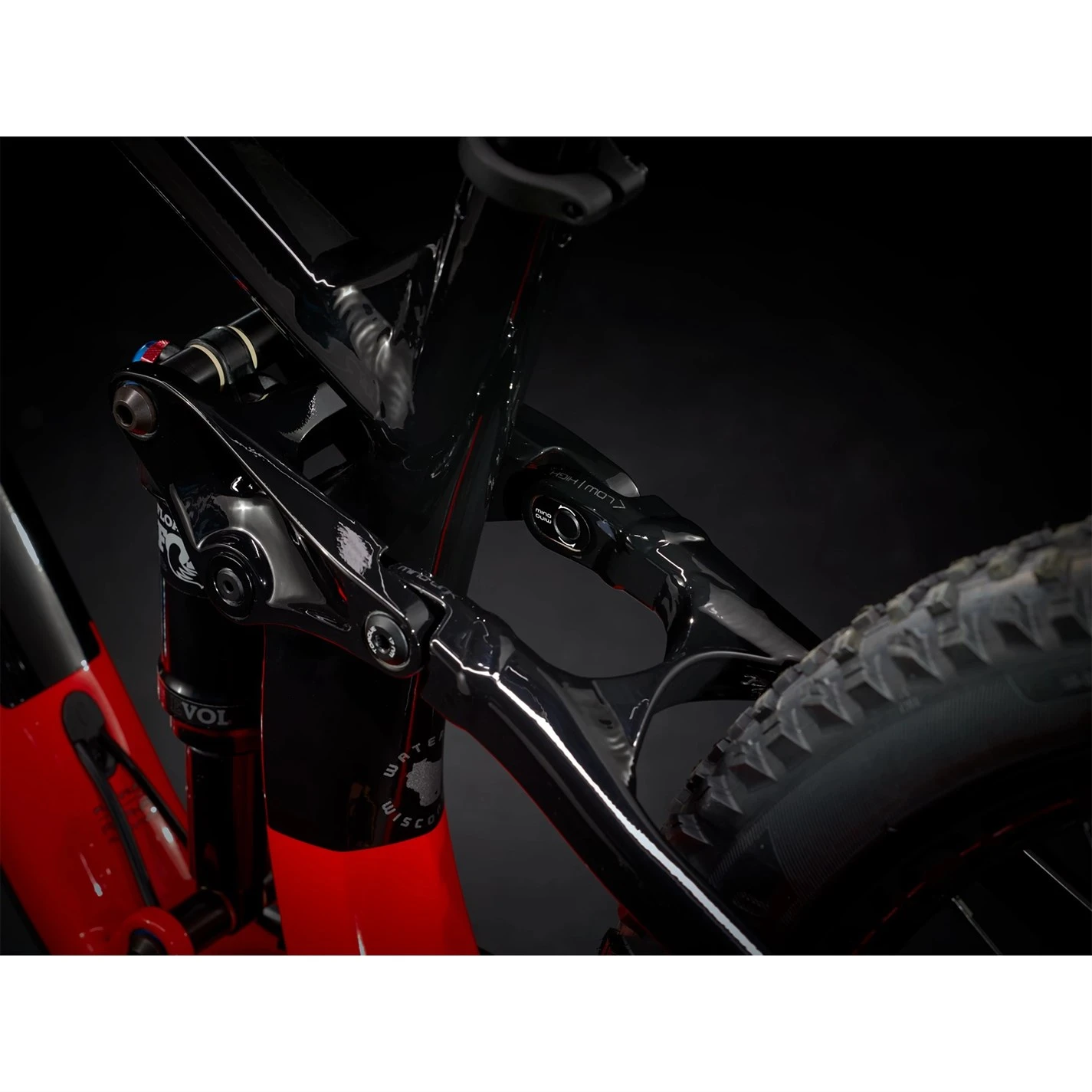

• Frame: Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
• Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel

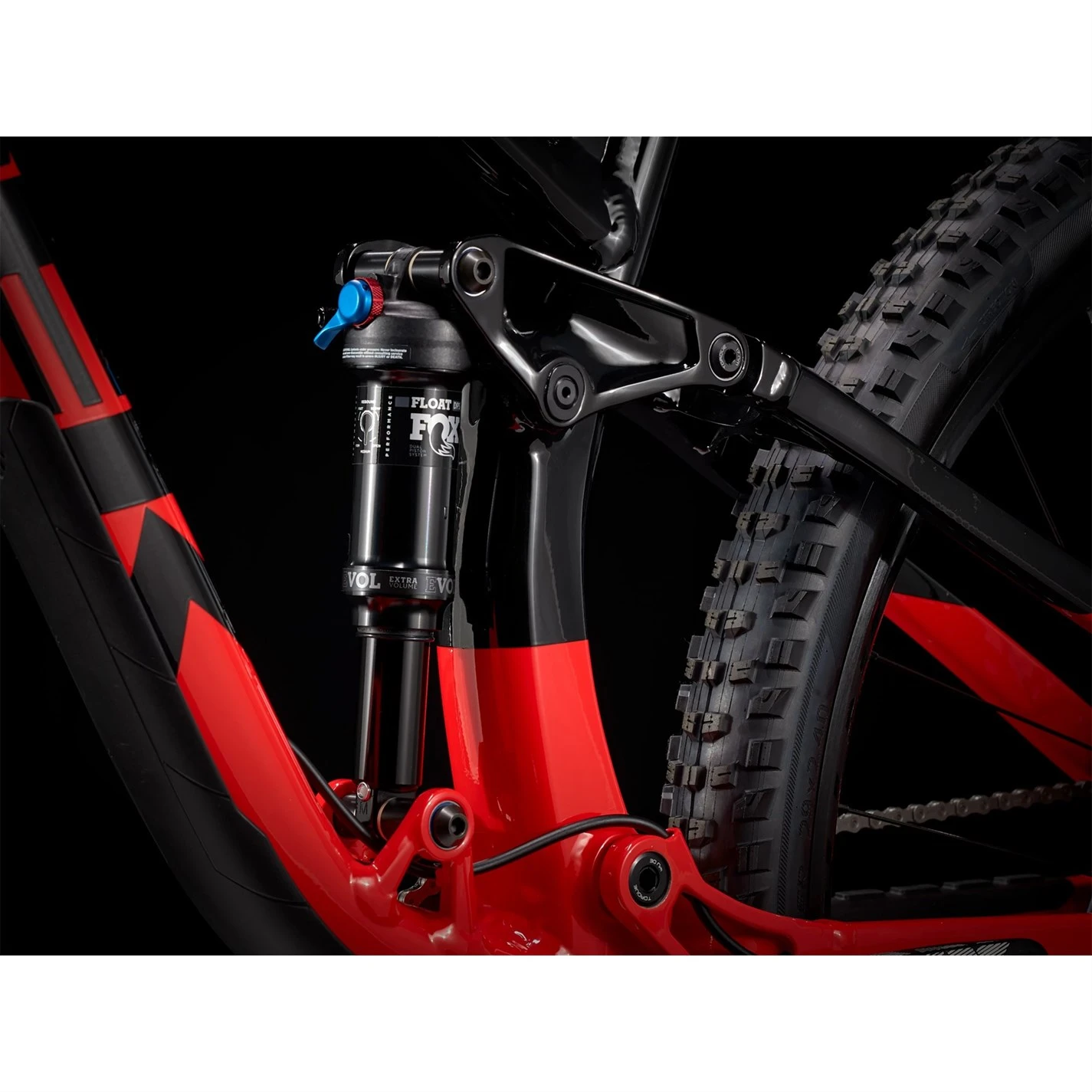

• Shock: Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm (XS,S) 55mm (M,ML,L,XL,XXL)

Wheels

• Rims: Bontrager Line Comp 30
• Hubs: (F) Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle / (R) Shimano 8/9/10 freehub, Boost148, 12 mm thru axle

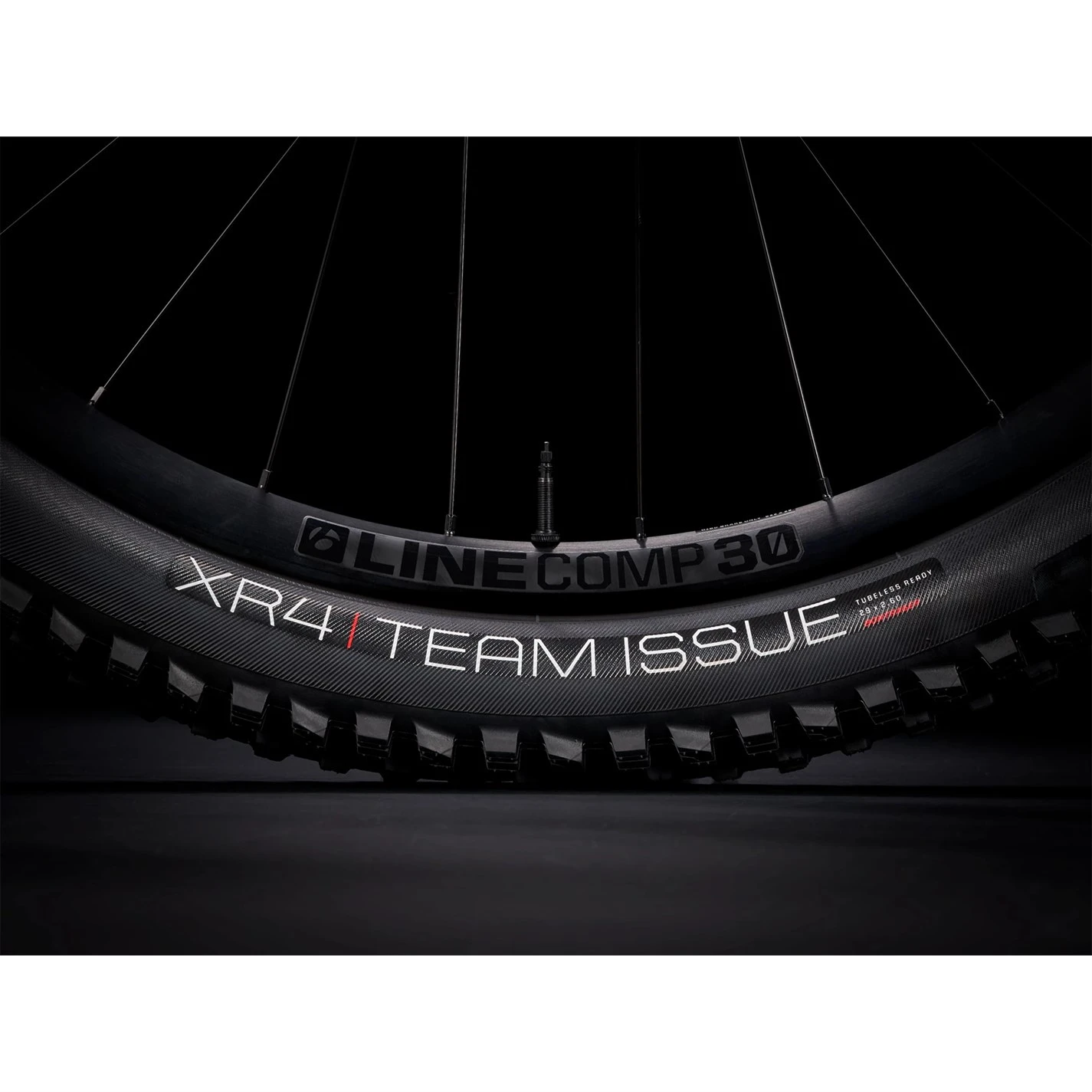

• Tyres: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5×2.60

Drivetrain

• Pedals: N/A

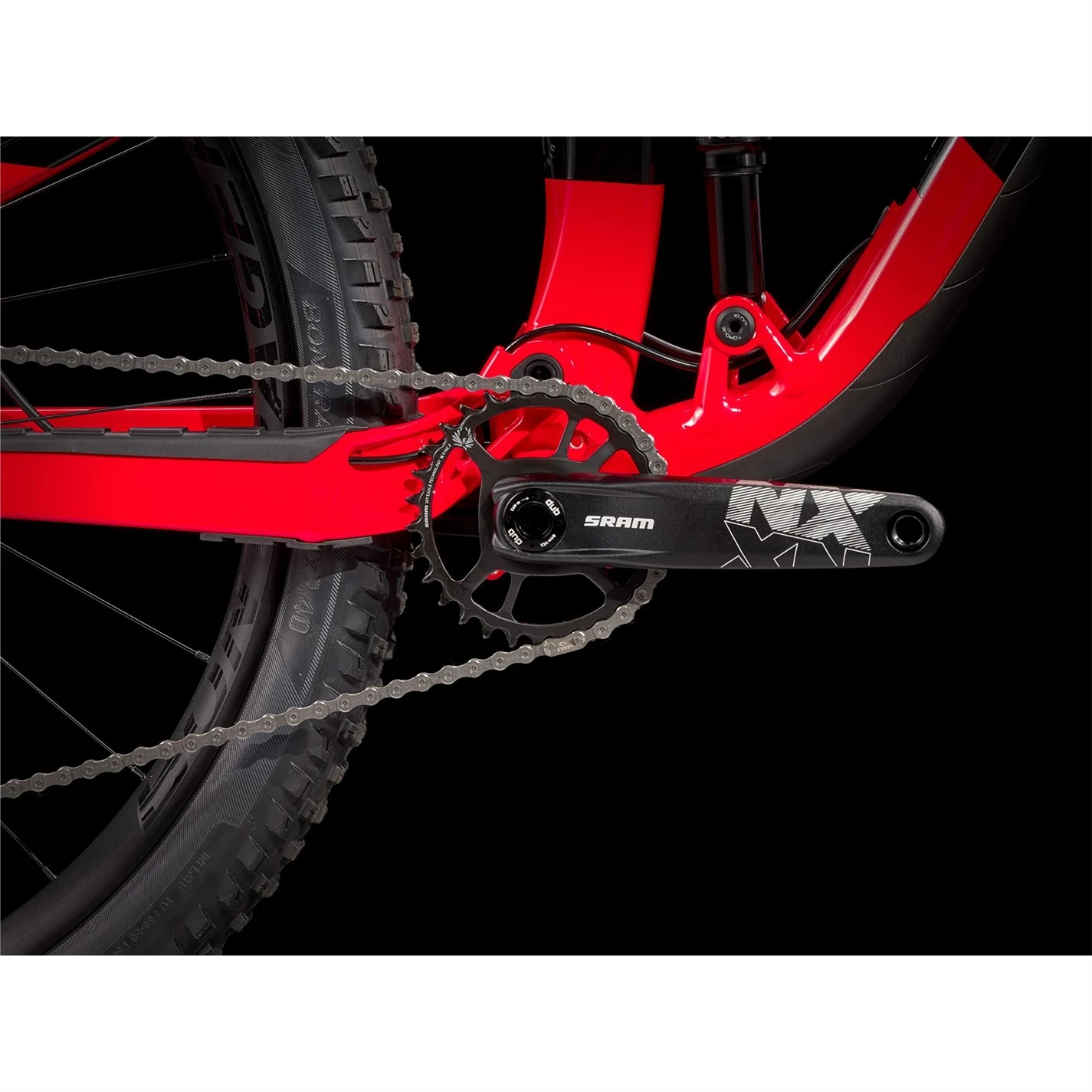

• Crank: SRAM NX Eagle, DUB, 30T steel ring, Boost (52mm chainline), 170mm (XS,S,M,M/L,L) 175mm (XL,XXL) length
• Front Derailleur: N/A
• Rear Derailleur: SRAM NX Eagle
• Shifters: SRAM NX Eagle, 12-speed
• Chain: 12-Speed
• Bottom Bracket: SRAM DUB, 92 mm, PressFit
• Rear Cogs: SRAM PG-1230 Eagle, 11-50, 12-speed

Components

• Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on

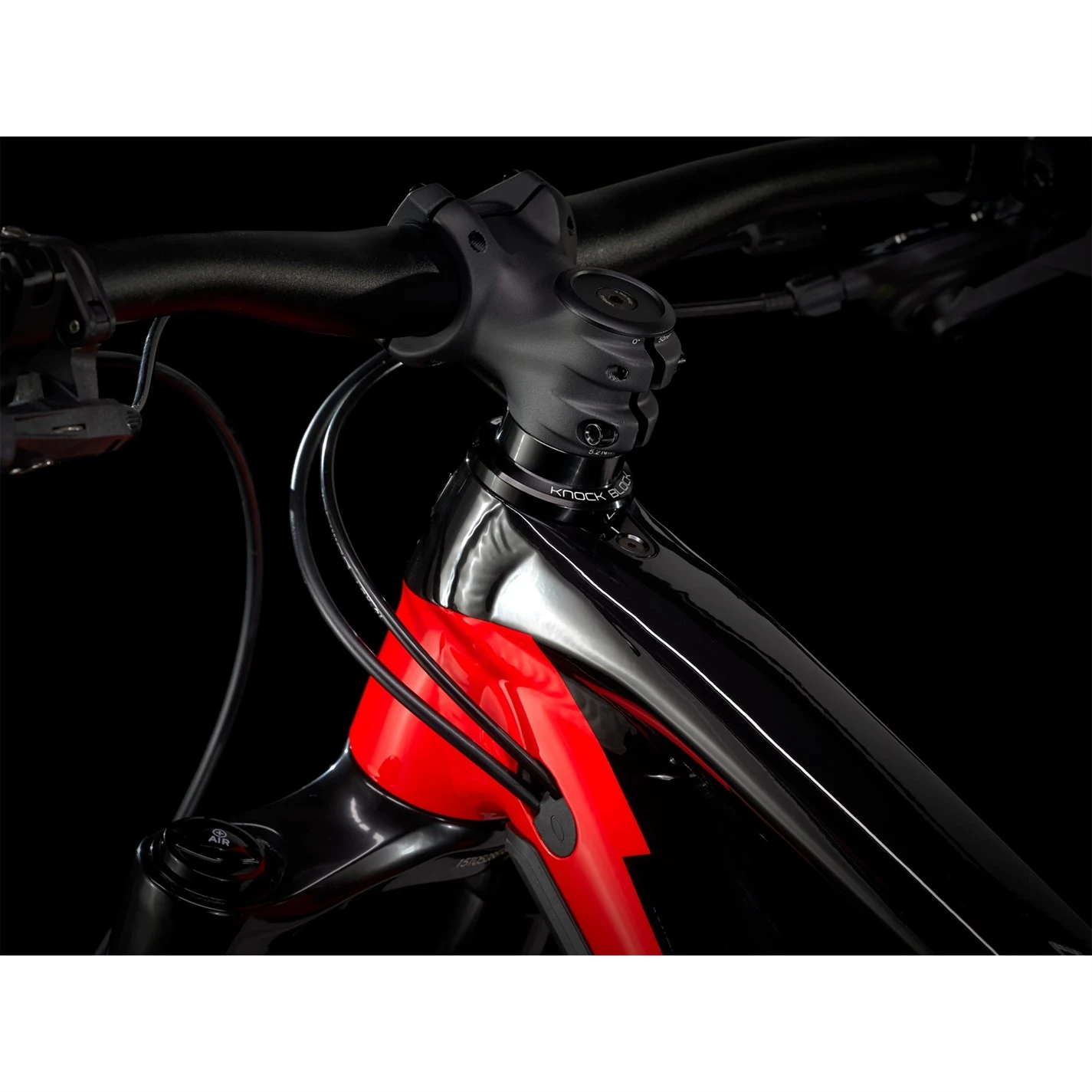

• Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length

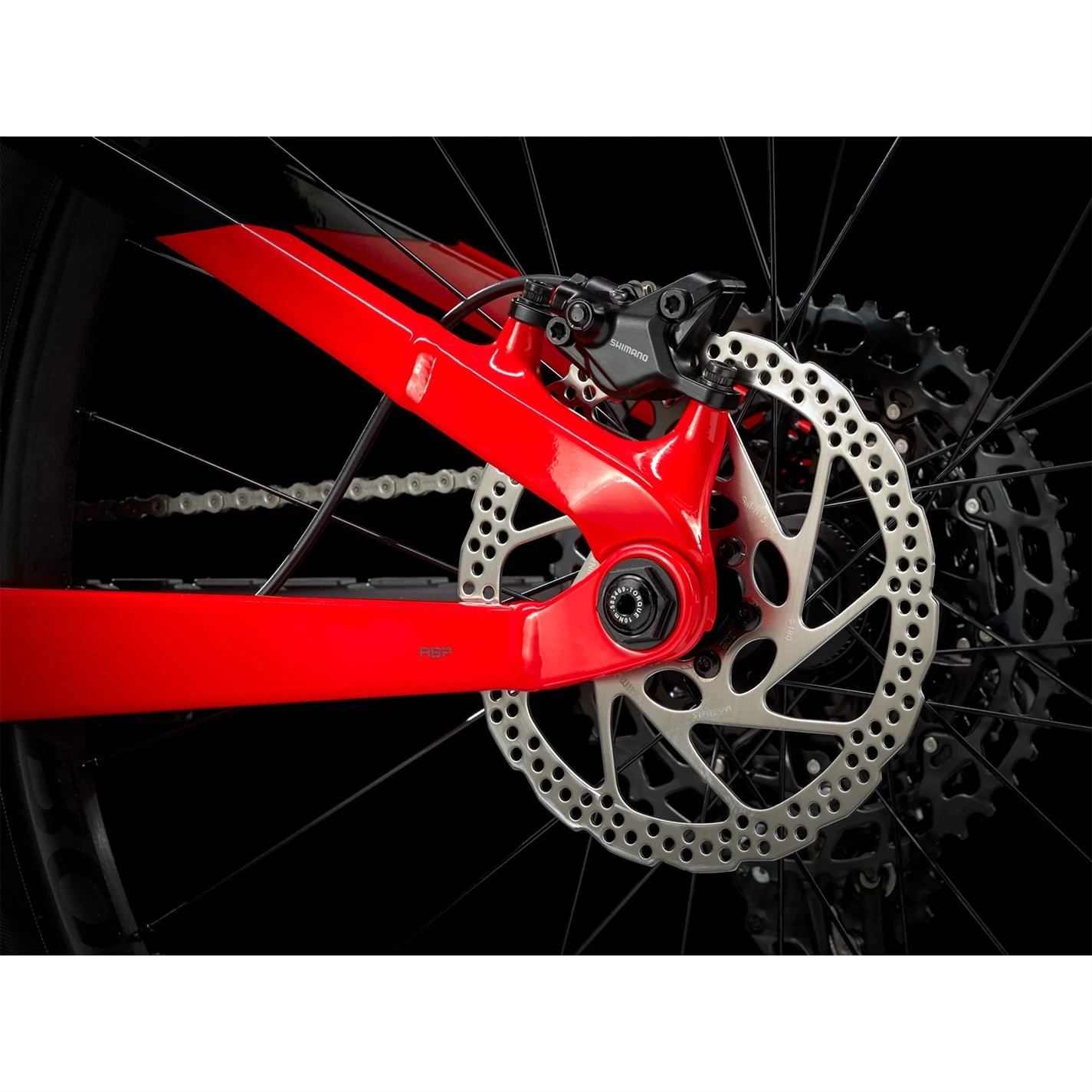

• Brakes: Shimano MT410 calliper, Shimano RT56, 6-bolt, 180 mm
• Brake Levers: Shimano MT4100 lever
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm (XS,S) 445mm (M,ML,L

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

Product code: 915596
