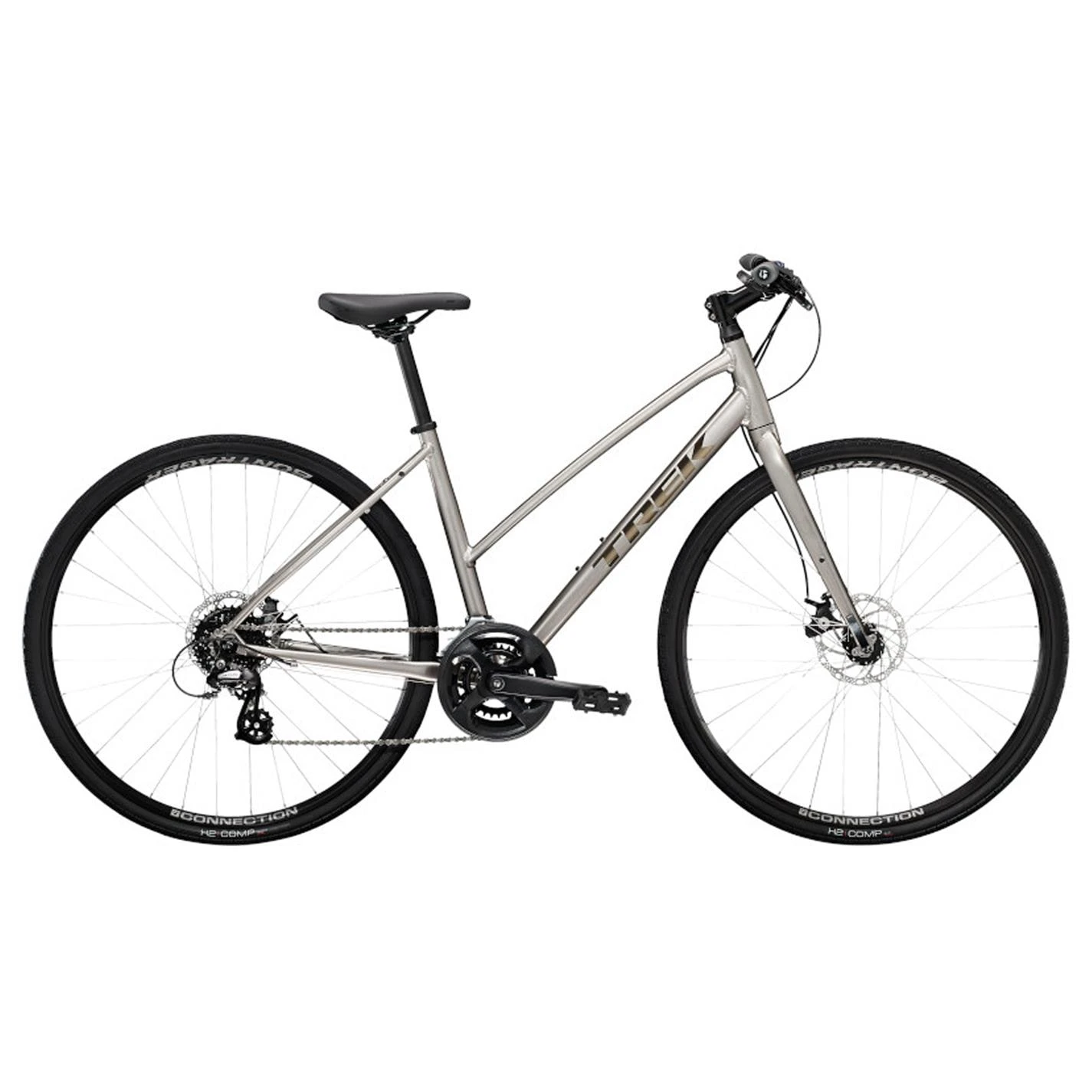

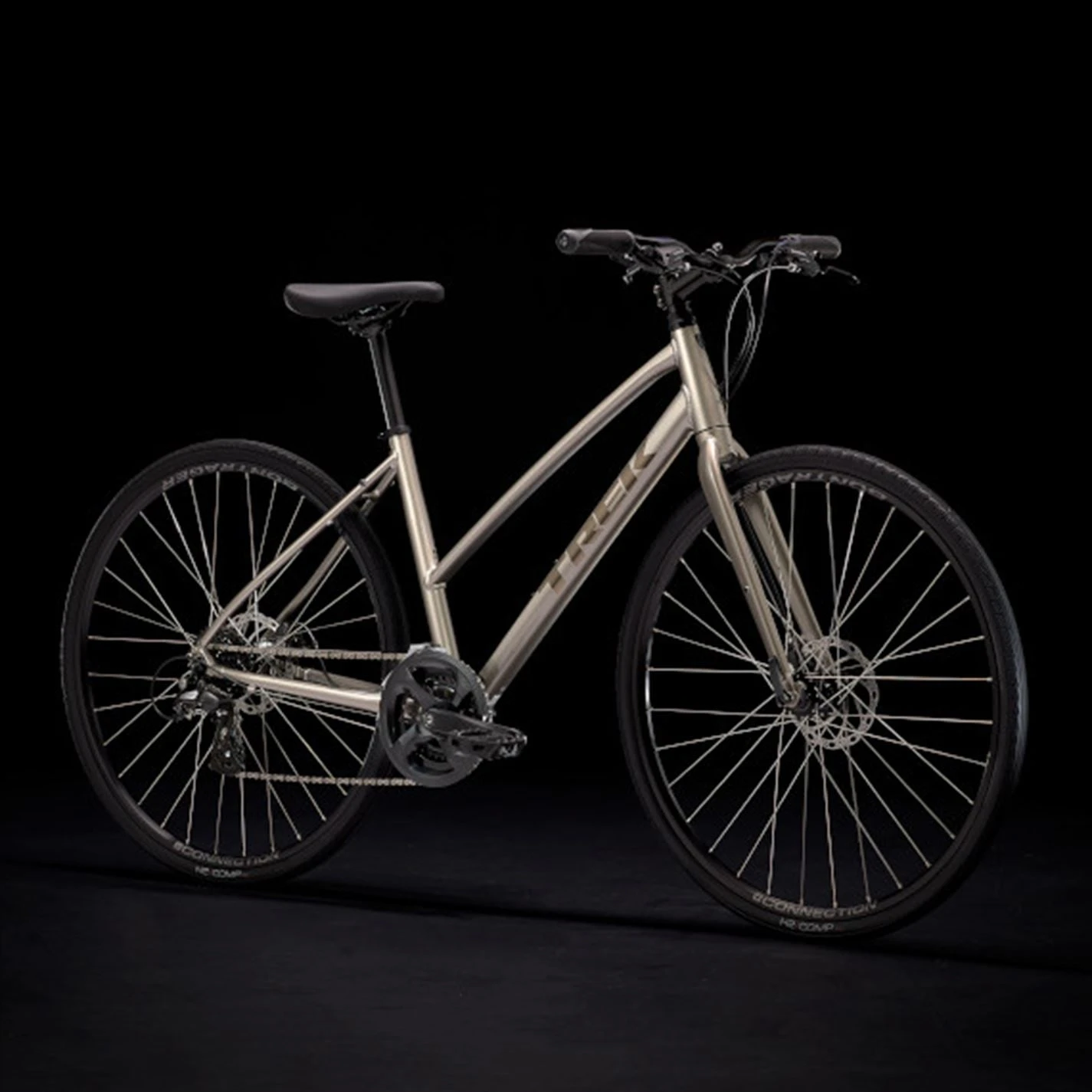

Trek FX 1 Stagger Disc Hybrid Bike

About the Trek FX 1 Stagger Disc

FX 1 Disc Stagger is a hybrid bike with a classic step-through frame design that’s easier to mount and dismount and modern disc brakes that give you extra stopping power in all weather conditions. It’s perfect for anyone looking to get out more, ride as a family, do a bit of exercise or commute to work on a versatile bike backed by a lifetime warranty.

Key Features

• It’s versatile and does whatever you want it to do, whether that’s riding for fitness, commuting or cruising to the farmer’s market to do the weekly shop
• The step-through frame makes it easy to hop on and go, and hop off when your ride is over
• More confident braking means that bad weather doesn’t have to keep you from enjoying your ride

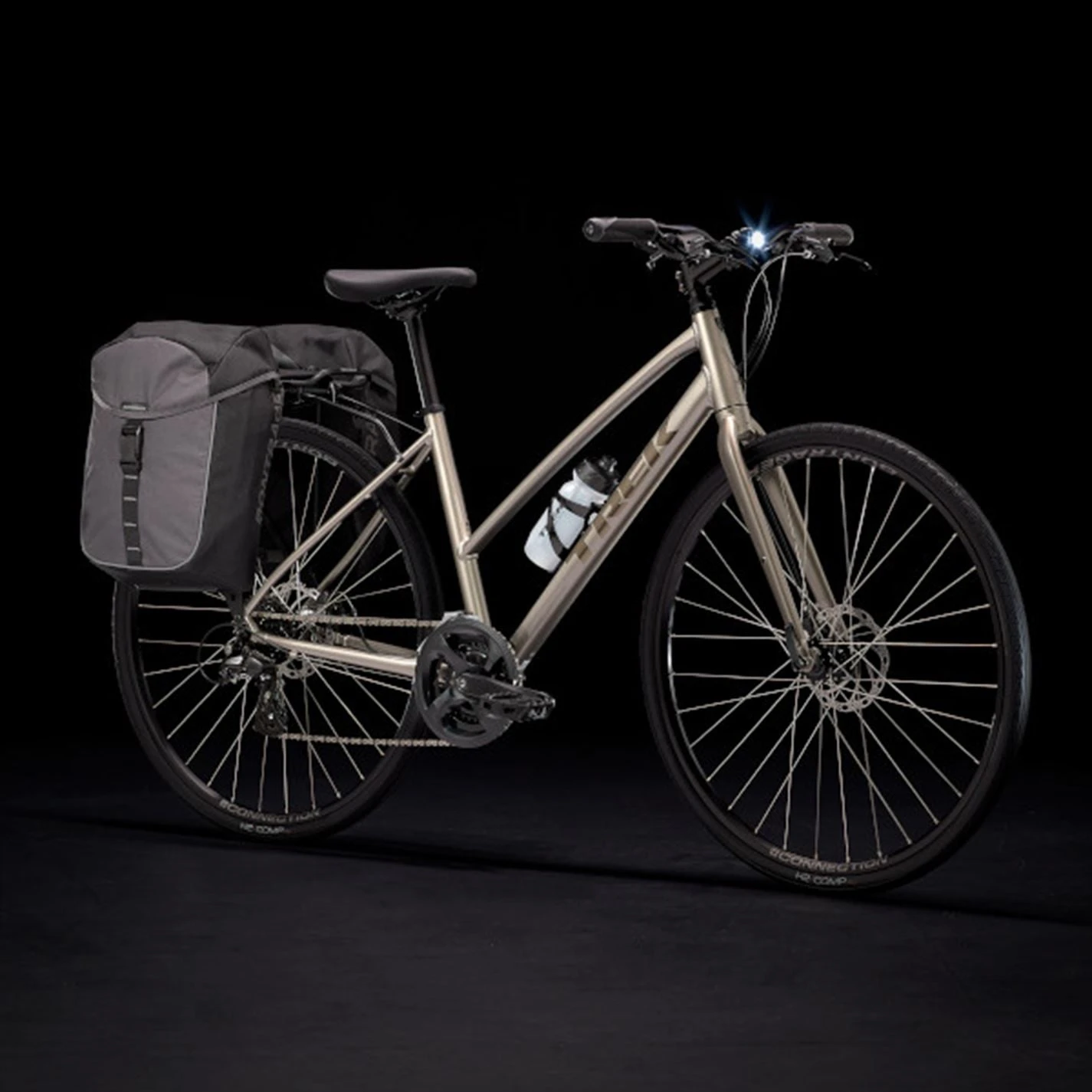

• It’s easy to accessorise with racks, a kickstand, mudguards, lights and more!
• Like every Trek hybrid, it’s backed by a lifetime warranty and supported by a wide network of retail partners

Specifications

Frameset

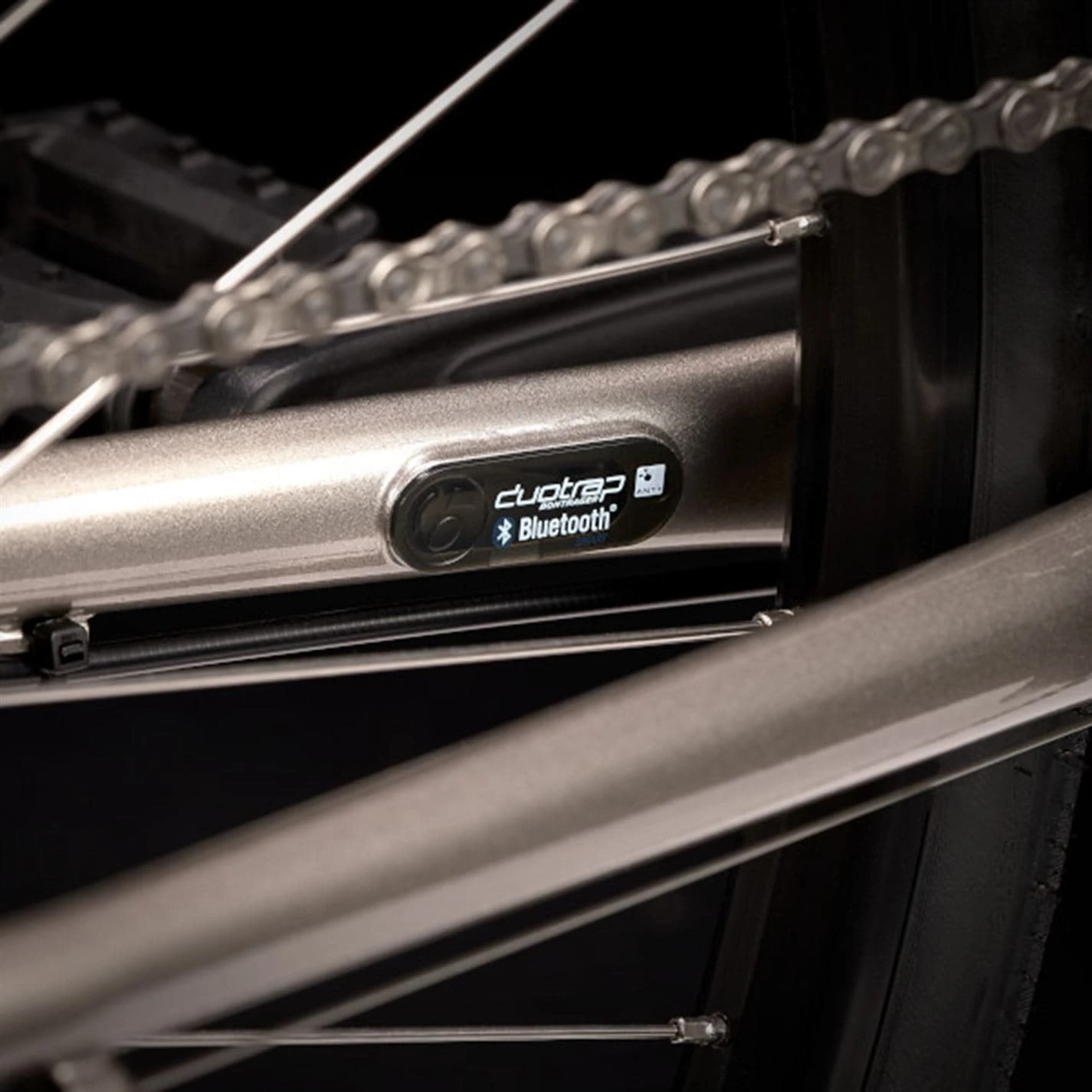

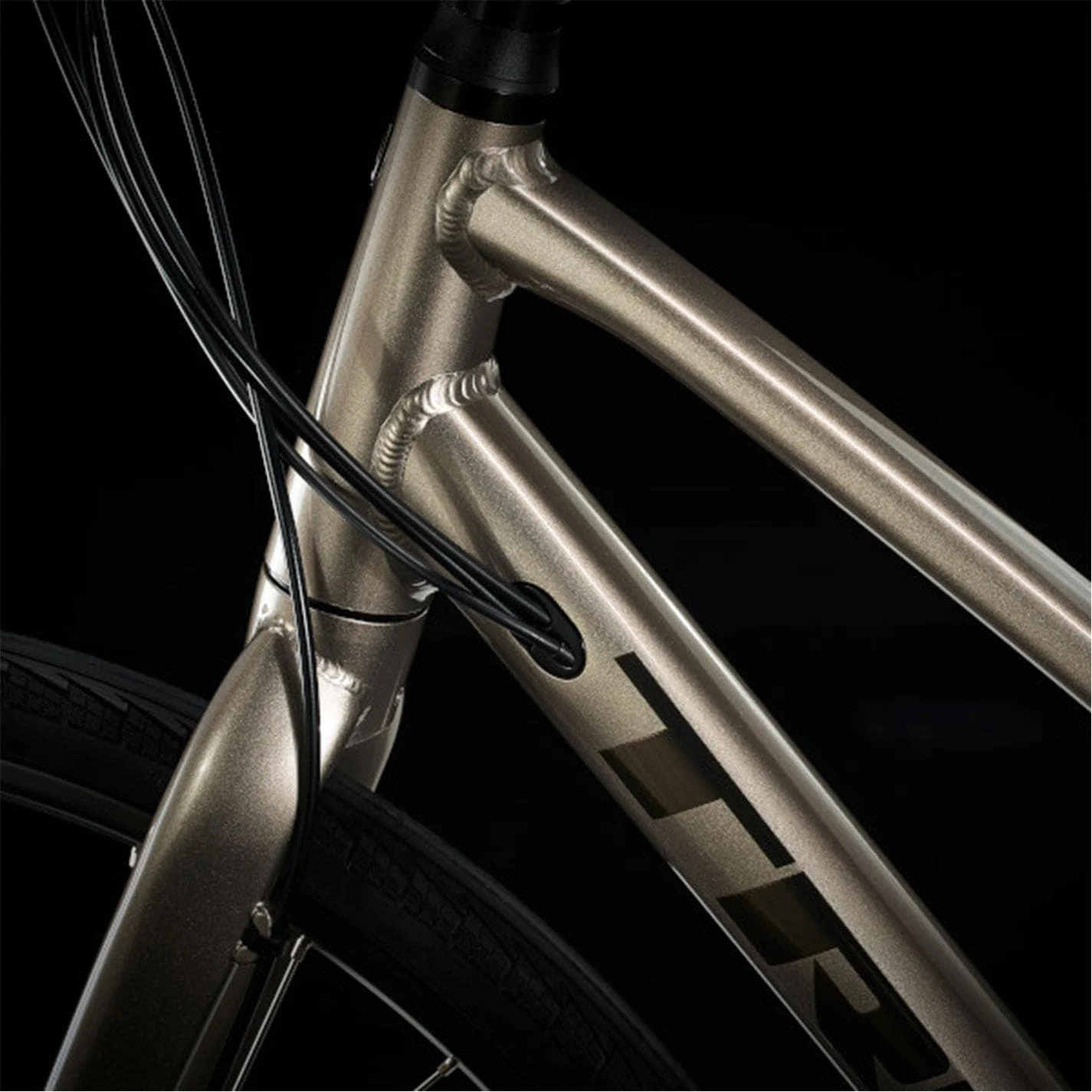

• Frame: Alpha Gold Aluminium, stagger top tube, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135×5 mm QR
• Fork: FX Steel, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR

Wheels

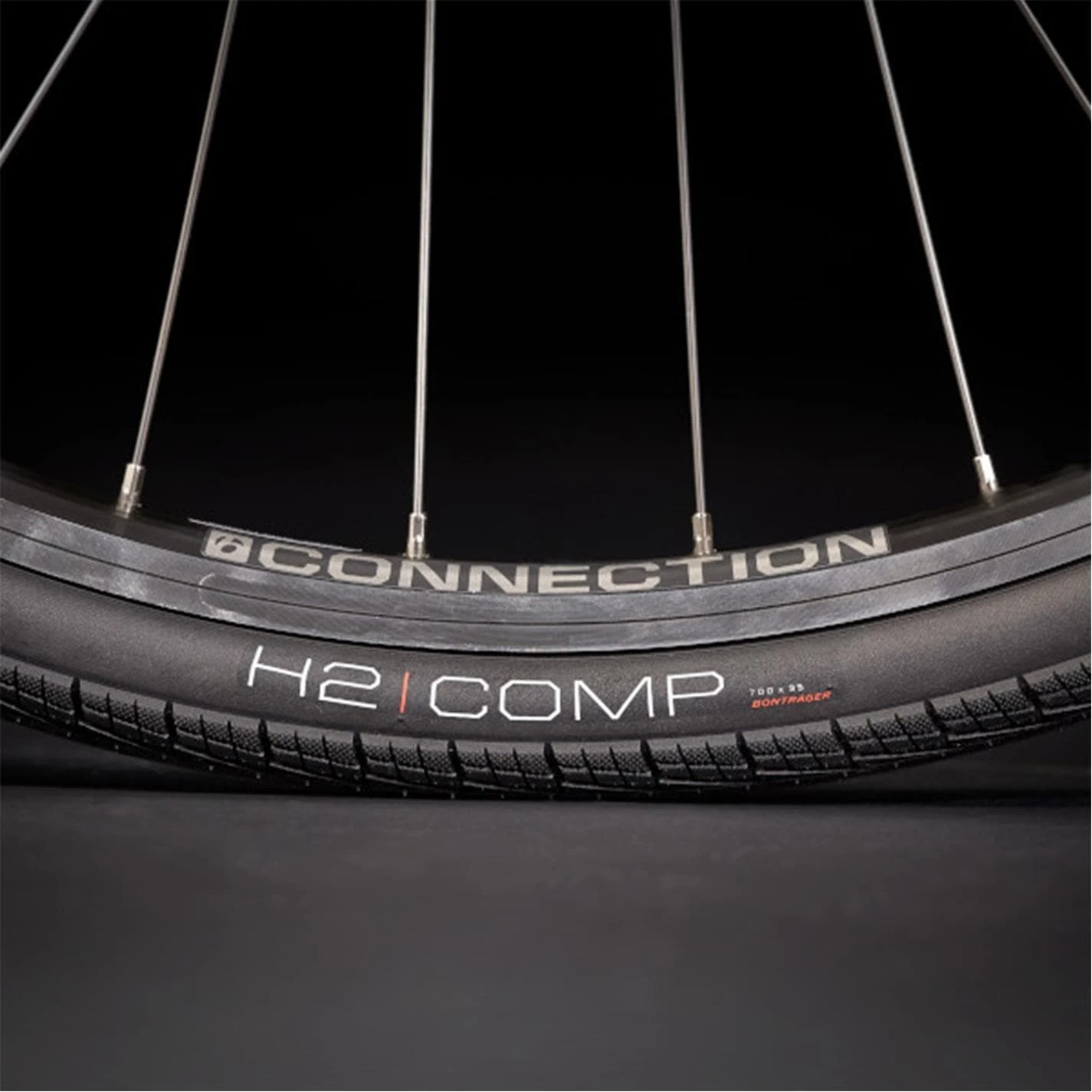

• Rims: Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
• Hubs: Formula DC-20, alloy, 6-bolt, 5×100 mm QR (F) Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135×5 mm QR (R)
• Tyres: Bontrager H2 Comp, wire bead, 30 tpi, 700x35c

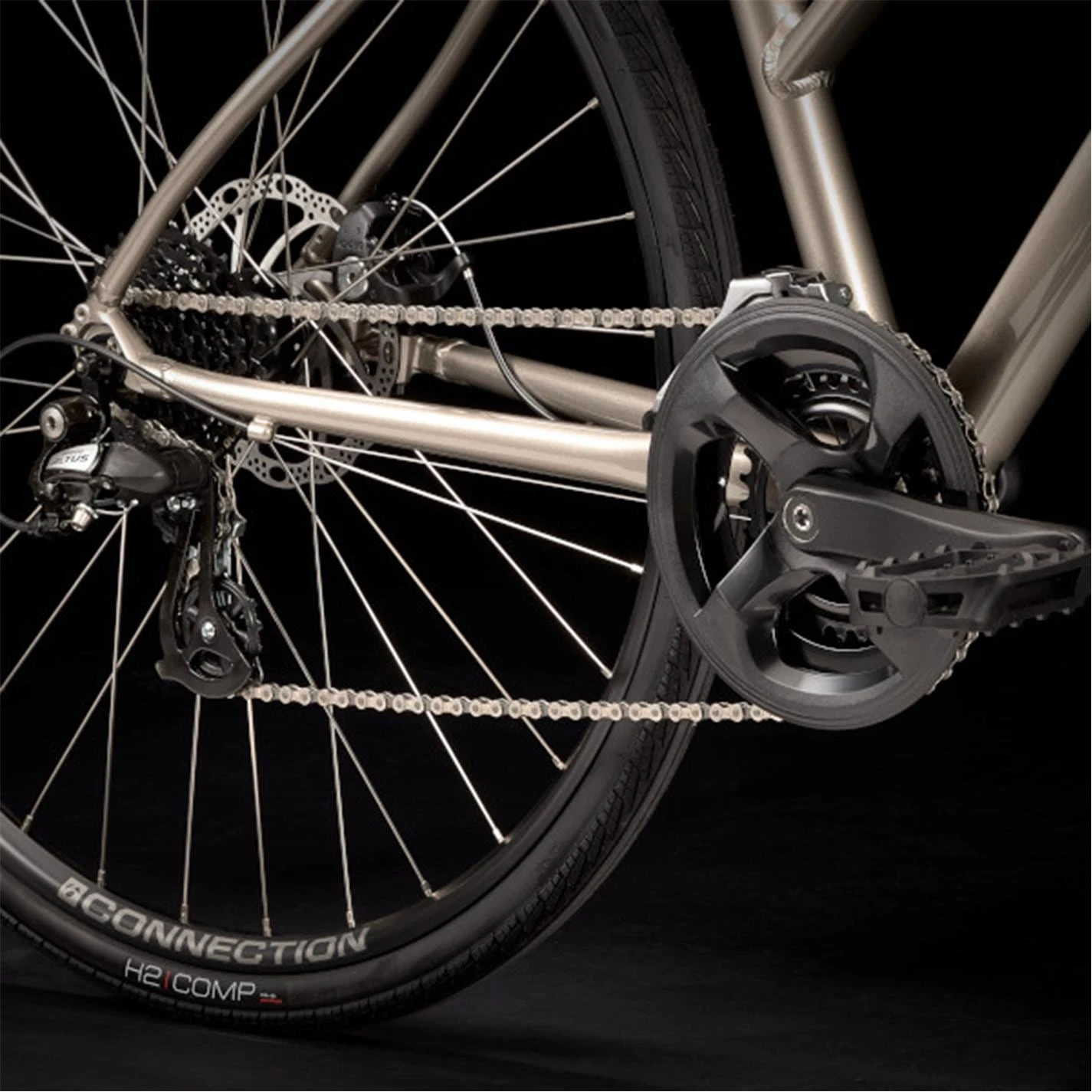

Drivechain

• Pedals: Wellgo nylon platform
• Crank: Forged alloy, 48/38/28, chainguard, 170 mm length
• Front Derailleur: Shimano Tourney TY510, 34.9 mm clamp, top swing, dual pull
• Rear Derailleur: Shimano Altus M310
• Shifters: Shimano Altus EF500, 7-speed
• Chain: KMC Z51
• Rear Cogs: SunRace MFM300 freewheel, 14-34, 7-speed

Components

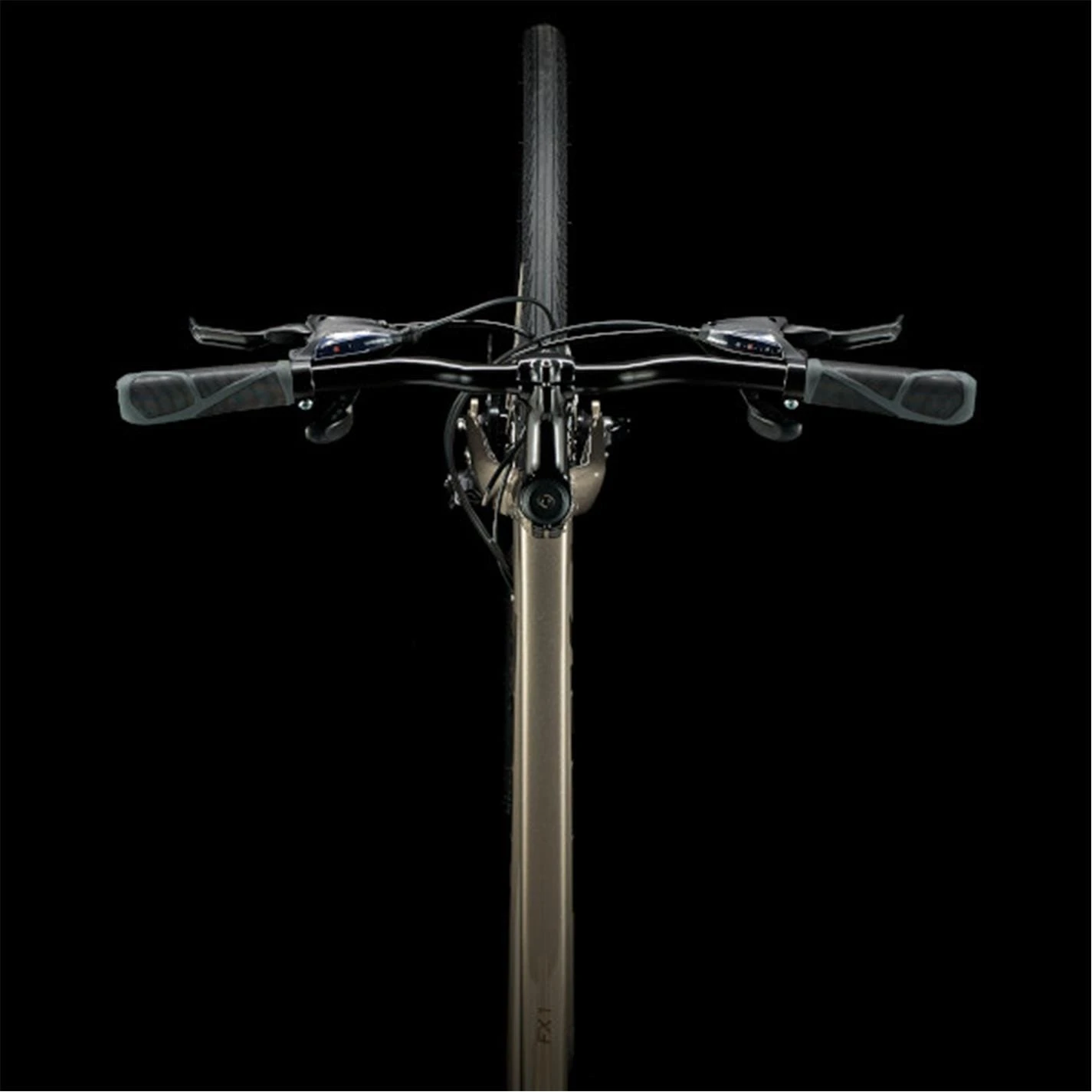

• Handlebar: Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width

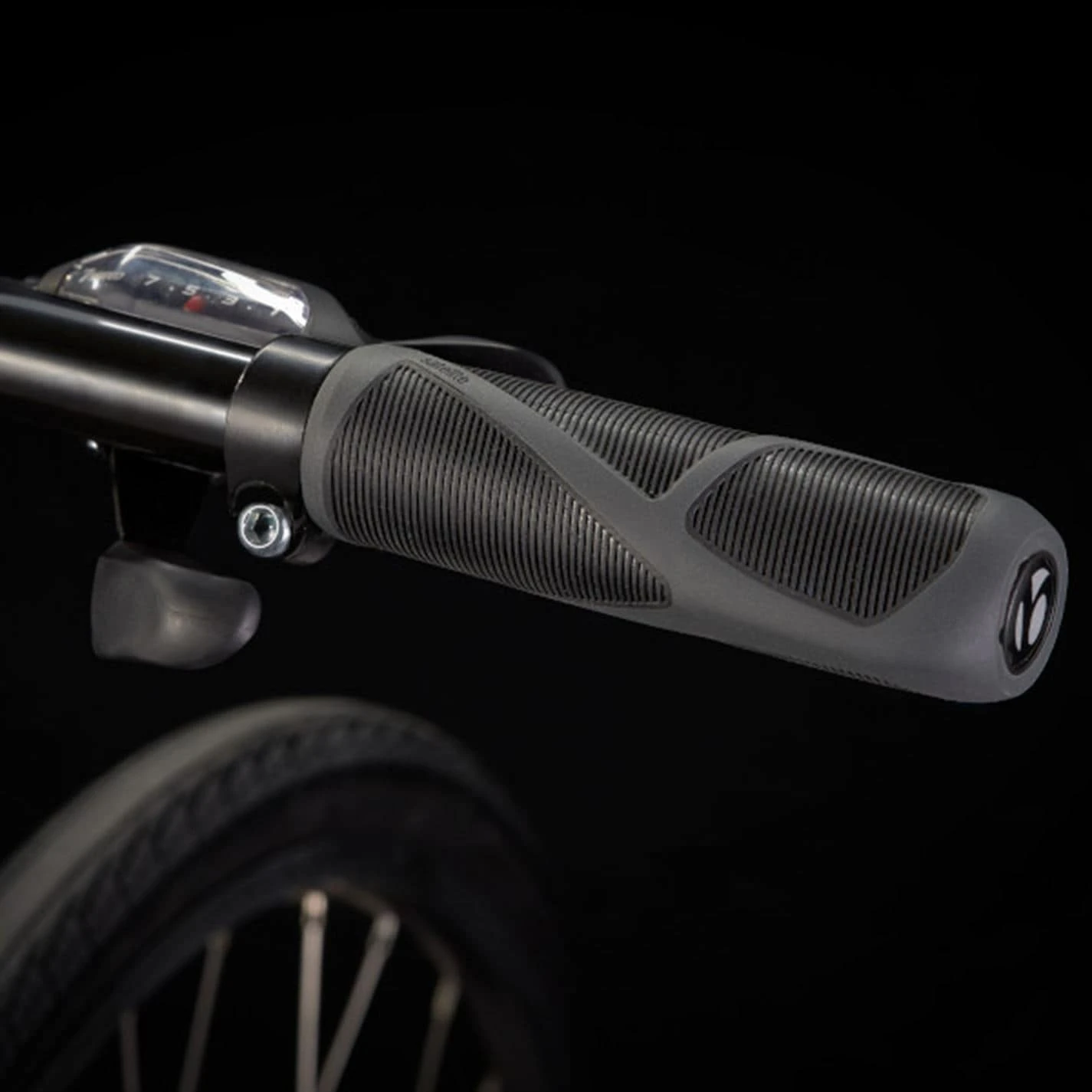

• Grips: Bontrager Satellite
• Stem: Bontrager alloy, 25.4 mm clamp, 10-degree, 90mm length (S,M) 110mm length (L)
• Headset: 1-1/8 threadless, sealed cartridge bearings
• Brakes: Tektro MD-U310 mechanical disc, flat-mount, 160 mm rotor

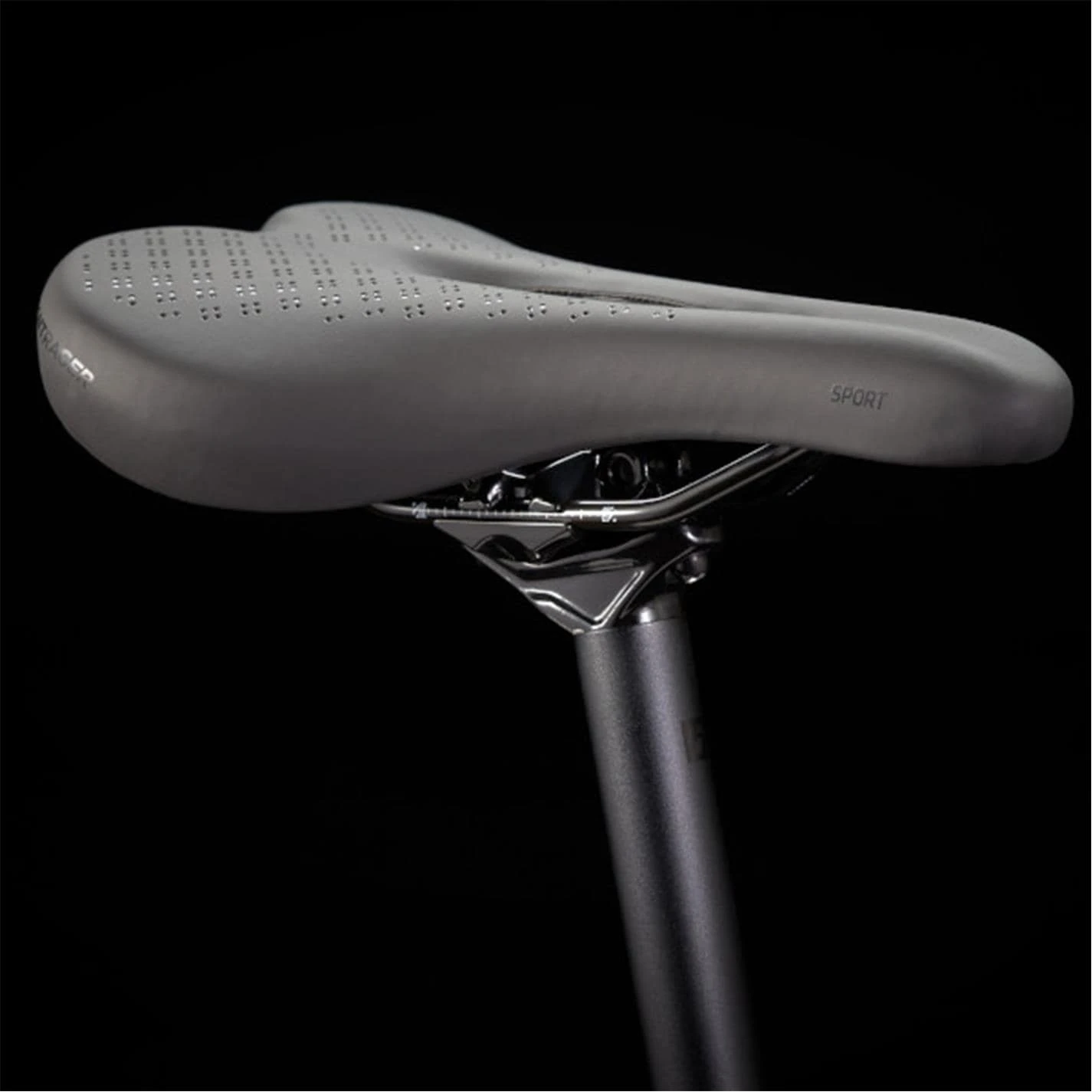

• Saddle: Bontrager Sport Women’s
• Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

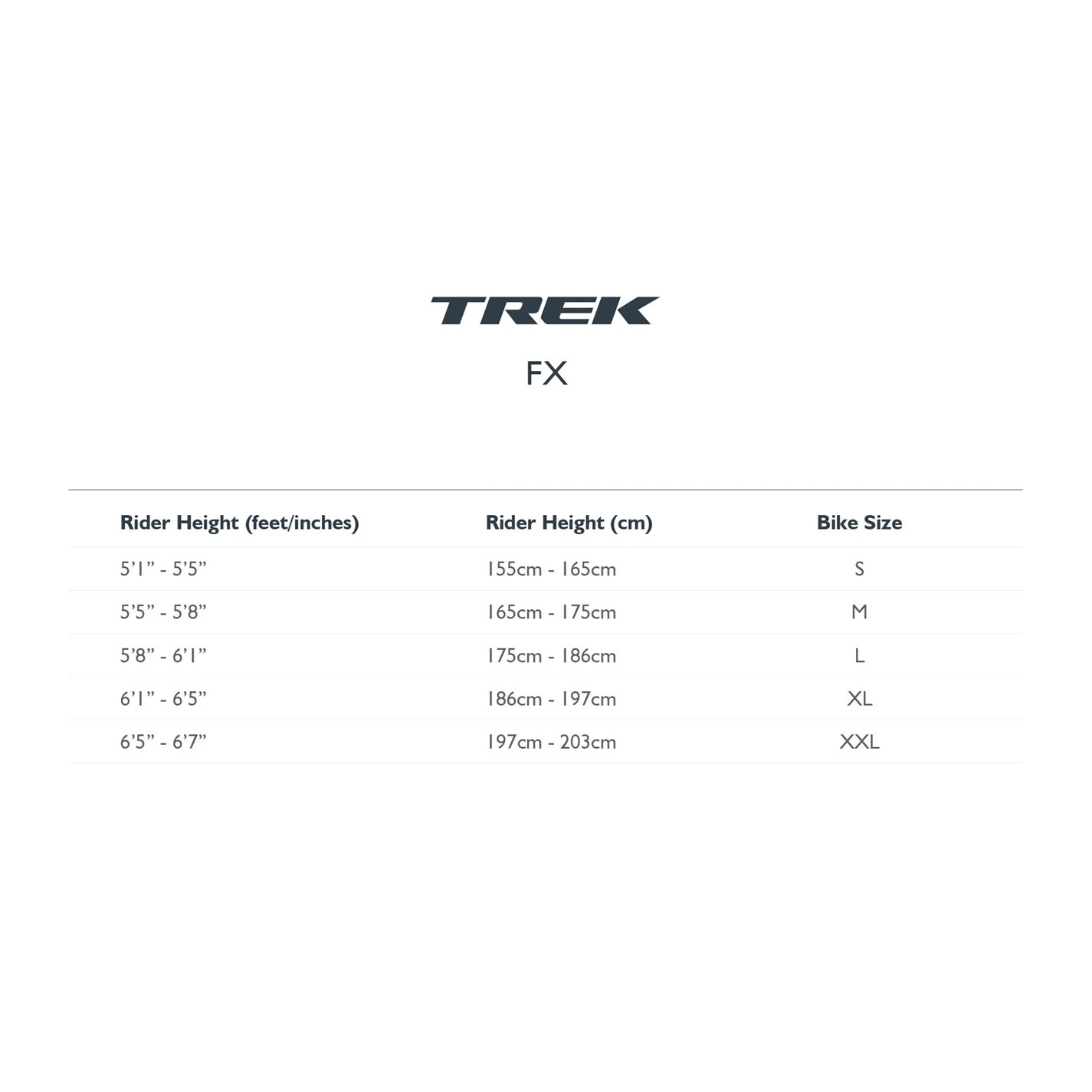

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Model Year


  2023

•
  Frame Material


  Aluminium

•
  Frame Style


  Step Through

•
  Suspension Type


  Rigid

•
  Chainset Type


  2x

•
  Number of Gears


  16 Speed

•
  Brake Type


  Mechanical Disc

•
  Discipline


  Hybrid

•
  Axle Type


  Quick Release

•
  Wheel Size


  700c

•
  Pedals


  Included


Product code: 933286
